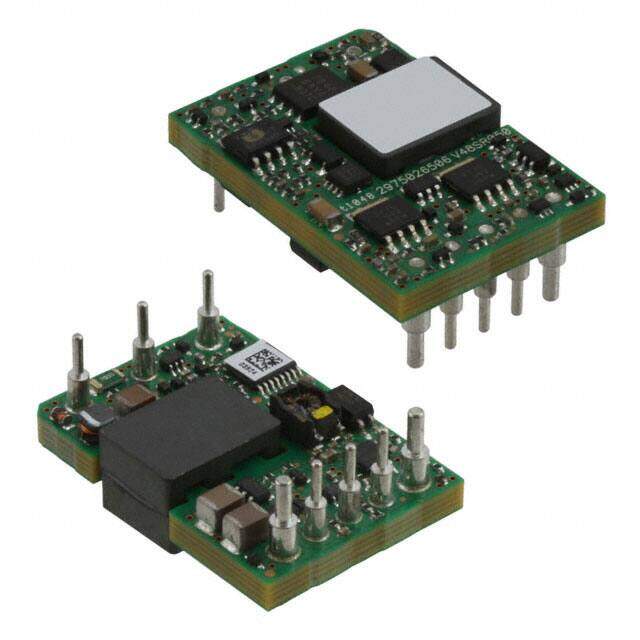

V48SR05013NRFA
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module, 1/16 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 65W
PDF
/
Buying Options
Total Price: USD $41.39
Unit Price: USD $41.3864
≥1 USD $41.3864
≥10 USD $41.05904
≥100 USD $40.73608
≥500 USD $39.442603
≥1000 USD $37.50296
≥3000 USD $34.916473
Inventory: 680
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/16 Brick
Number of Pins 8
Technical
Operating Temperature -40°C~124°C
Packaging Tray
Published 2007
Series Delphi V48SR (66W)
Size / Dimension 1.30Lx0.90W x 0.37 H 33.0mmx22.9mmx9.4mm
Feature Remote On/Off, OCP, OTP, OVP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Max Power Dissipation 65W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Pin Count 8
Number of Outputs 1
Approval Agency UL, TUV, CE
Efficiency 91%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 75V
Output Voltage 5V
Max Output Current 13A
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Output Current 13A
Output Power 65W
Control Features Enable, Active Low
Current - Output 1 13A
Max Input Voltage (DC) 75V
Min Input Voltage (DC) 36V
Warm-up Time 0.03 s
Dimensions
Height 9.398mm
Length 33mm
Width 22.9mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
