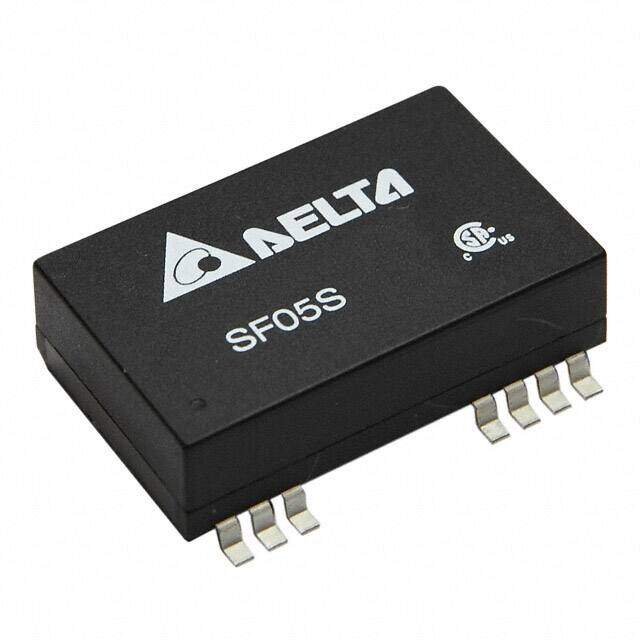

SF05D1205A
RoHS
RoHS compliant
RoHS compliantPackage 24-SMD Module, 12 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 2-OUT -5V/5V -0.5A/0.5A 5W 14-Pin SMD
PDF
/
Inventory: 2697
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 24-SMD Module, 12 Leads
Technical
Operating Temperature -40°C~71°C
Packaging Tube
Published 2012
Series SF05S/D (5W)
Size / Dimension 1.31Lx1.01W x 0.10 H 33.4mmx25.6mmx10.2mm
Feature Remote On/Off, OCP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 14
Type Isolated Module
Applications Medical
Max Power Dissipation 5W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
JESD-30 Code R-PDMA-G14
Number of Outputs 2
Efficiency 80%
Voltage - Isolation 1.5kV
Output Voltage 5V
Max Output Current 500mA
Voltage - Output 1 5V
Voltage - Input (Min) 9V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Current - Output (Max) 500mA 500mA
Output Power 5W
Control Features Enable, Active High
Voltage - Output 2 -5V
Current - Output 1 500mA
Total Power Output-Max 5W
Current - Output 2 500mA
Max Input Voltage (DC) 18V
Min Input Voltage (DC) 9V
Dimensions
Height 2.54mm
Length 33.4mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
