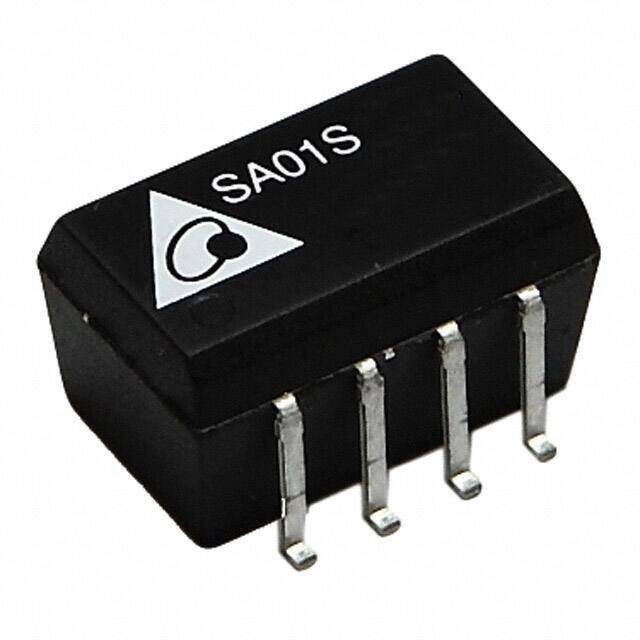

SA01S2409A
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 9V 0.11A 1W 8-Pin SMD
PDF
/
Inventory: 4422
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-SMD Module
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2012
Series SA01S (1W)
Size / Dimension 0.50Lx0.42W x 0.28 H 12.75mmx10.7mmx7mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 8
ECCN Code EAR99
Type Isolated Module
Applications Medical
Max Power Dissipation 1W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
Terminal Pitch 2.54mm
JESD-30 Code R-PDMA-G8
Number of Outputs 1
Efficiency 77%
Voltage - Isolation 1kV
Output Voltage 9V
Max Output Current 110mA
Voltage - Input (Min) 21.6V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Output Current 110mA
Output Power 1W
Current - Output 1 110mA
Total Power Output-Max 1W
Max Input Voltage (DC) 26.4V
Min Input Voltage (DC) 21.6V
Dimensions
Height 7.112mm
Width 8.3mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
