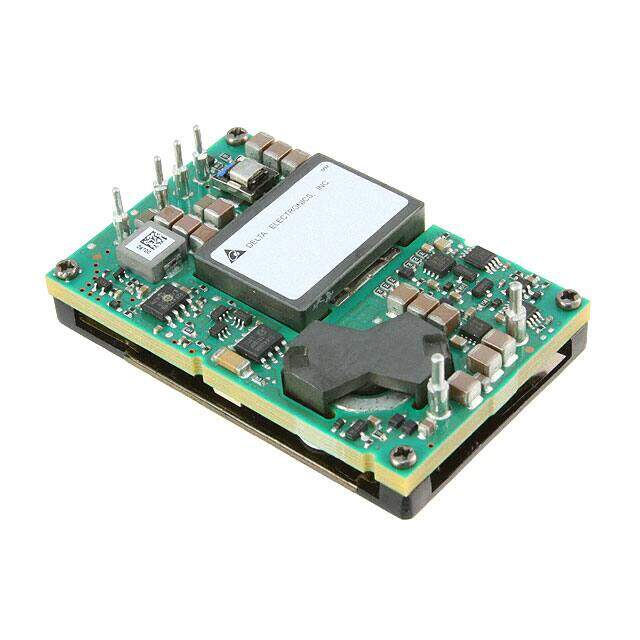

Q48SK12033NRFH image
Favorite
Q48SK12033NRFH image
Favorite

Q48SK12033NRFH

Delta Electronics
RoHS
/
Package 6-DIP Module, 1/4 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description Module DC-DC 1-OUT 12V 33A 400W 6-Pin Quarter-Brick
PDF
/
Inventory: 2932
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Through Hole
Package / Case 6-DIP Module, 1/4 Brick
Surface Mount NO

Technical

Operating Temperature -40°C~108°C
Packaging Tray
Series Delphi Q48SK (400W)
Size / Dimension 2.28Lx1.45W x 0.50 H 57.9mmx36.8mmx12.7mm
Feature Remote On/Off, OCP, OTP, OVP, UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 400W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form PIN/PEG
Number of Functions 1
Pin Count 6
JESD-30 Code R-XXMA-P6
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 95.5%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 75V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 33A
Control Features Enable, Active Low
Total Power Output-Max 396W

Dimensions

Length 57.9mm
Width 36.8mm
