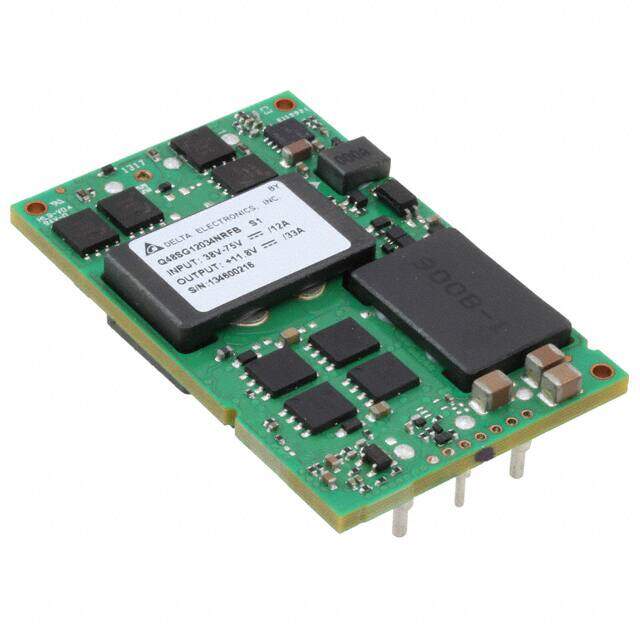

Q48SG12034NRFB
RoHS
/
Package 13-DIP Module, 1/4 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 11.8V 34A 400W 13-Pin Quarter-Brick
PDF
/
Inventory: 4772
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 36.8mm
Length 58.4mm
Height 11.176mm
Technical
Current - Output 1 34A
Control Features Enable, Active Low
Output Power 400W
Output Current 34A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 38V
Max Output Current 34A
Output Voltage 11.8V
Voltage - Input (Max) 75V
Voltage - Isolation 2.25kV
Efficiency 96%
Number of Outputs 1
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 400W
Applications ITE (Commercial)
Type Isolated Module, Digital
ECCN Code EAR99
Number of Terminations 13
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, OCP, OTP, OVP, UVLO
Size / Dimension 2.30Lx1.45W x 0.44 H 58.4mmx36.8mmx11.2mm
Series Delphi Q48SG
Published 2013
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Package / Case 13-DIP Module, 1/4 Brick
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
