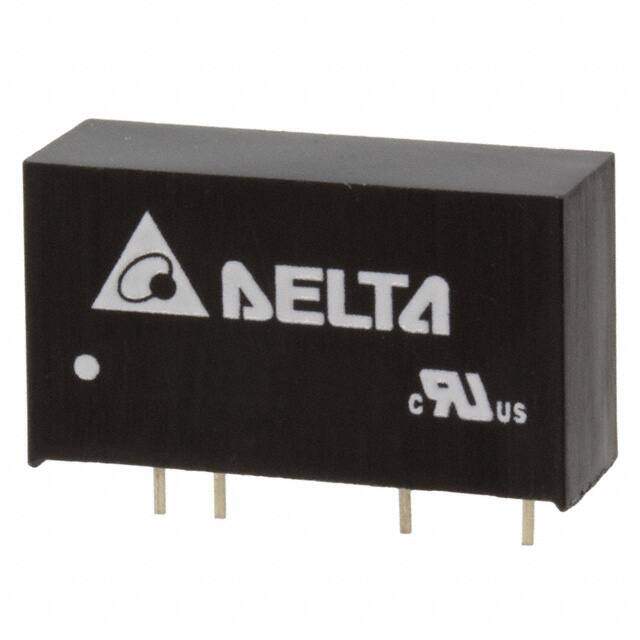

PI01S1215A
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 15V 0.065A 1W 4-Pin SIP
PDF
/
Inventory: 1494
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 7.5mm
Length 22mm
Height 12.446mm
Technical
Min Input Voltage (DC) 10.8V
Max Input Voltage (DC) 13.2V
Total Power Output-Max 1W
Current - Output 1 65mA
Output Power 1W
Output Current 65mA
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 10.8V
Max Output Current 65mA
Output Voltage 15V
Voltage - Isolation 6kV
Efficiency 66%
Number of Outputs 1
JESD-30 Code R-PSMA-T5
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Applications Medical
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 0.87Lx0.30W x 0.49 H 22.0mmx7.5mmx12.5mm
Series PI01S/D (1W)
Published 2013
Packaging Tube
Operating Temperature -25°C~85°C
Physical
Package / Case 7-SIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
