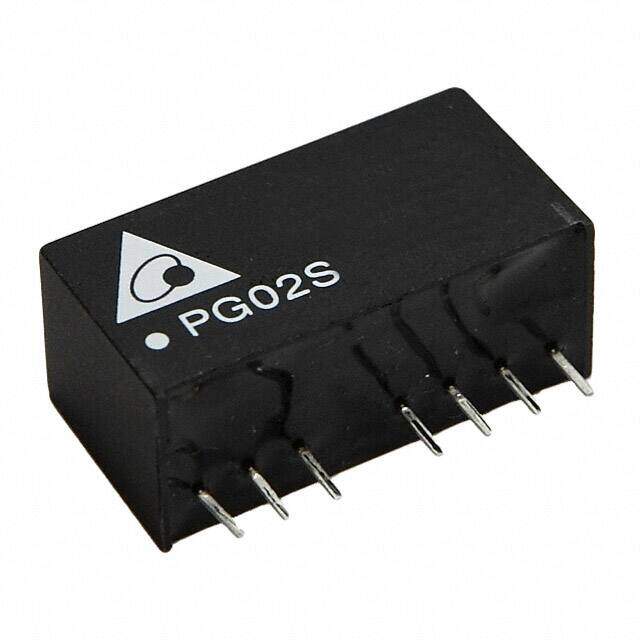

PG02S0512A
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 12V 0.167A 2W 7-Pin SIP
PDF
/
Buying Options
Total Price: USD $8.01
Unit Price: USD $8.005119
≥1 USD $8.005119
≥10 USD $7.551997
≥100 USD $7.124529
≥500 USD $6.721255
≥1000 USD $6.340806
Inventory: 1177
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-DIP Module, 7 Leads
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2013
Series PG02S (2W)
Size / Dimension 0.86Lx0.36W x 0.44 H 21.8mmx9.1mmx11.2mm
Feature Remote On/Off, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 7
ECCN Code EAR99
Type Isolated Module
Applications Medical
Max Power Dissipation 2W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
JESD-30 Code R-PSMA-T7
Number of Outputs 1
Efficiency 75%
Voltage - Isolation 1kV
Output Voltage 12V
Max Output Current 167mA
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Output Current 167mA
Output Power 2W
Control Features Enable, Active Low
Current - Output 1 167mA
Total Power Output-Max 2W
Max Input Voltage (DC) 9V
Min Input Voltage (DC) 4.5V
Dimensions
Height 11.176mm
Width 9.3mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
