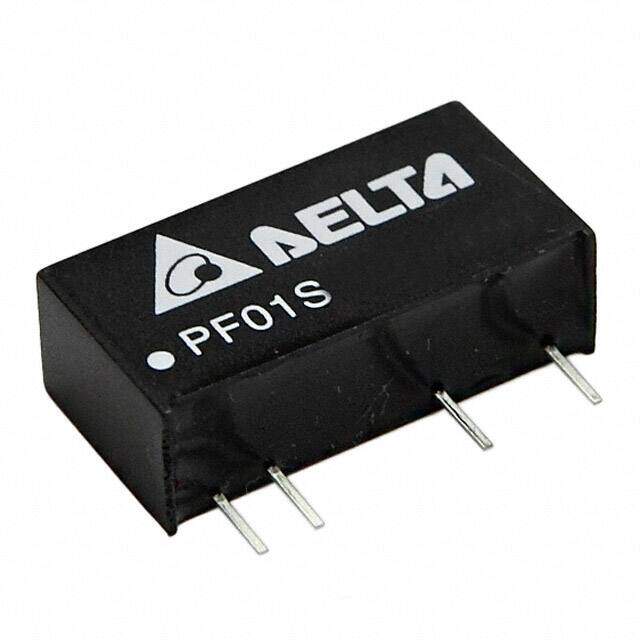

PF01S1209A
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 9V 0.11A 1W 4-Pin SIP
PDF
/
Inventory: 1138
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2012
Series PF01S (1W)
Size / Dimension 0.77Lx0.24W x 0.40 H 19.6mmx6.0mmx10.2mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Type Isolated Module
Applications Medical
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
JESD-30 Code R-PSMA-T4
Number of Outputs 1
Efficiency 86%
Voltage - Isolation 3kV
Output Voltage 9V
Max Output Current 110mA
Voltage - Input (Min) 10.8V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Output Current 110mA
Output Power 1W
Current - Output 1 110mA
Total Power Output-Max 1W
Max Input Voltage (DC) 13.2V
Min Input Voltage (DC) 10.8V
Dimensions
Height 10.16mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
