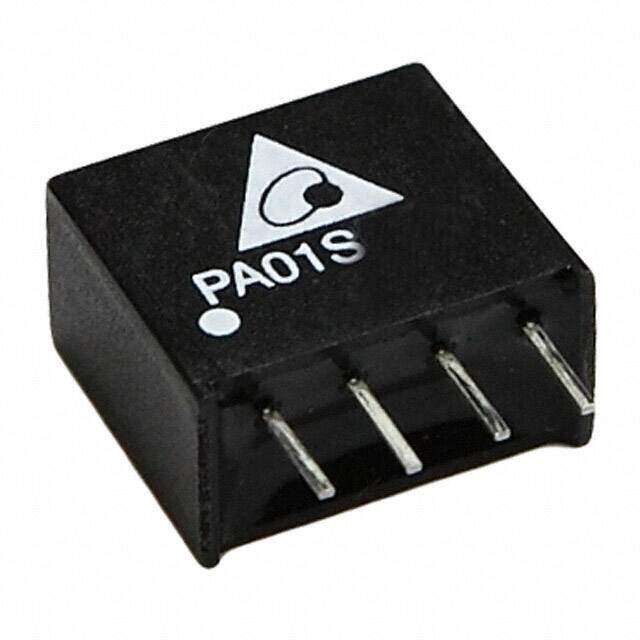

PA01S2415A
RoHS
RoHS compliant
RoHS compliantPackage 4-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC converter 21.6. . .26.4 VDC 15 VDC 1 W, PA01S2415A, Delta-Electronics
PDF
/
Buying Options
Total Price: USD $6.12
Unit Price: USD $6.12301
≥1 USD $6.12301
≥10 USD $5.77643
≥100 USD $5.44946
≥500 USD $5.141
≥1000 USD $4.85
Inventory: 6474
Minimum: 1
-
+
Technical Details
Technical
Max Input Voltage (DC) 26.4V
Min Input Voltage (DC) 21.6V
Current - Output 1 67mA
Max Input Voltage 26.4V
Min Input Voltage 21.6V
Output Power 1W
Output Current 67mA
Current - Output (Max) 67mA
Voltage - Input (Min) 21.6V
Voltage - Output 1 15V
Max Output Current 67mA
Output Voltage 15V
Voltage - Input (Max) 26.4V
Voltage - Isolation 1kV
Efficiency 79%
Number of Outputs 1
Max Power Dissipation 1W
Power (Watts) 1W
Applications ITE (Commercial)
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 0.45Lx0.24W x 0.39 H 11.5mmx6.0mmx10.0mm
Series PA01S (1W)
Published 2012
Packaging Tube
Operating Temperature -40°C~85°C
Dimensions
Height 9.906mm
Length 11.43mm
Width 6.096mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Package / Case 4-SIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
