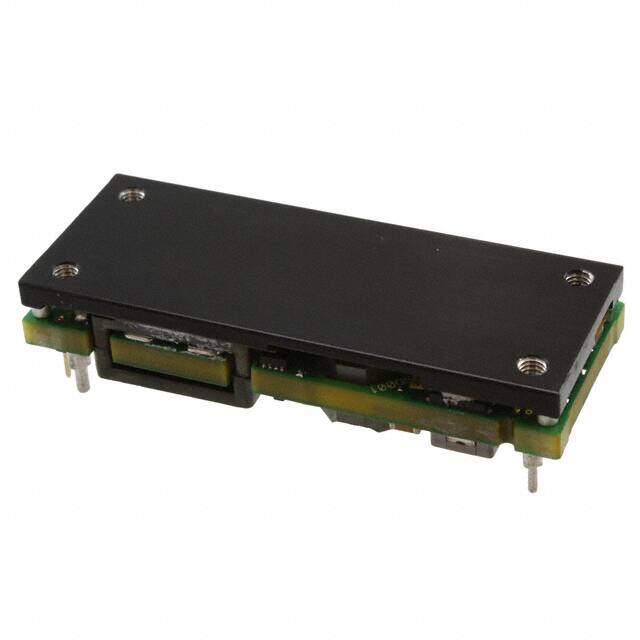

E48SD12020NNFG
RoHS
/
Package 8-DIP Module, 1/8 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 1-OUT 11.7V 20A 240W 8-Pin 1/8-Brick
PDF
/
Inventory: 3417
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 22.86mm
Length 58.42mm
Height 10.922mm
Technical
Current - Output 1 20A
Max Input Voltage 75V
Min Input Voltage 36V
Control Features Enable, Active Low
Output Power 240W
Output Current 20A
Current - Output (Max) 20A
Voltage - Input (Min) 36V
Voltage - Output 1 12V
Max Output Current 20A
Output Voltage 11.7V
Voltage - Input (Max) 75V
Voltage - Isolation 2.25kV
Efficiency 95.5%
Number of Outputs 1
Max Power Dissipation 240W
Power (Watts) 240W
Applications ITE (Commercial)
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Isolated Module, Digital
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, OCP, OTP, OVP, UVLO
Size / Dimension 2.30Lx0.90W x 0.43 H 58.4mmx22.9mmx10.9mm
Series Delphi E48SD (240W)
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Number of Pins 8
Package / Case 8-DIP Module, 1/8 Brick
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 18 Weeks
