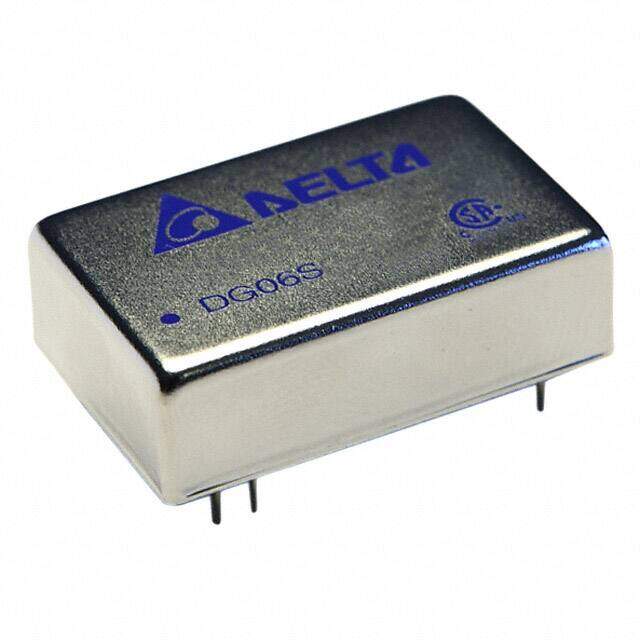

DG06D0515A image
Favorite
DG06D0515A image
Favorite

DG06D0515A

Delta Electronics
RoHS
RoHS RoHS compliant
Package 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description Module DC-DC 2-OUT -15V/15V -0.2A/0.2A 6W 8-Pin DIP
PDF
/
Buying Options
Total Price: USD $26.35
Unit Price: USD $26.3472
≥1 USD $26.3472
≥10 USD $26.14128
≥100 USD $25.938
≥500 USD $25.53291
≥1000 USD $24.317216
≥3000 USD $22.290752
Inventory: 273
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Length 31.8mm
Height 10.16mm

Technical

Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 7V
Current - Output 2 -200mA
Total Power Output-Max 6W
Current - Output 1 200mA
Voltage - Output 2 -15V
Output Power 6W
Current - Output (Max) 200mA 200mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Output 1 15V
Max Output Current 200mA
Output Voltage 15V
Voltage - Isolation 1.5kV
Efficiency 82%
Number of Outputs 2
JESD-30 Code R-MDMA-P8
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 6W
Applications Medical
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OCP, SCP, UVLO
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series DG06S/D (6W)
Packaging Tube
Operating Temperature -40°C~71°C

Physical

Package / Case 24-DIP Module, 8 Leads
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 10 Weeks
