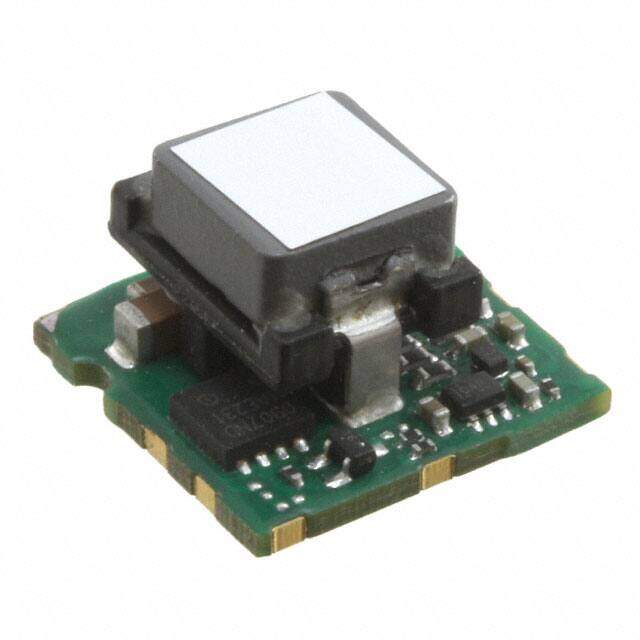

DCS04S0A0S06NFA
RoHS
/
Package Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTER 0.6-3.63V 6A 22W
PDF
/
Inventory: 3279
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2013
Series Delphi DCS
Size / Dimension 0.48Lx0.48W x 0.29 H 12.2mmx12.2mmx7.3mm
Feature Remote On/Off, OCP, UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Max Power Dissipation 22W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form BU
Number of Functions 1
Number of Outputs 1
Approval Agency UL
Efficiency 94%
Output Voltage 3.63V
Max Output Current 6A
Voltage - Output 1 0.6V~3.63V
Voltage - Input (Min) 2.4V
Input Voltage-Nom 4V
Trim/Adjustable Output YES
Output Current 6A
Output Power 21.78W
Control Features Enable, Active Low
Protections OUTPUT OVER CURRENT
Control Mode VOLTAGE-MODE
Current - Output 1 6A
Max Input Voltage (DC) 5.5V
Min Input Voltage (DC) 2.4V
Warm-up Time 0.002 s
Dimensions
Height 7.366mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
