DC02D0505A
RoHS
RoHS compliant

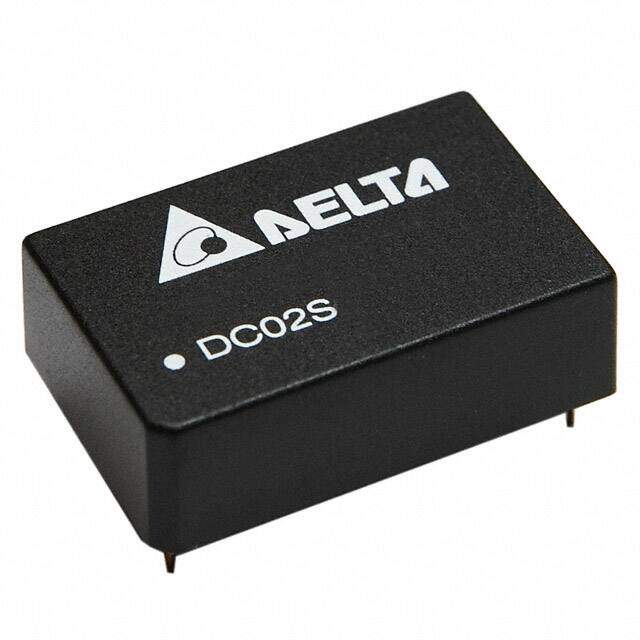

RoHS compliantPackage 24-DIP Module, 9 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
The DC02S/D series are miniature, DIP Package, isolated 2W DC/DC converters with ultra- high 6,000VDC isolation . It offers short circuit protection and allows a wide operating temperature range of -25C to +75C.These isolated DC/DC converters.With creative design technology and optimization of component placement, these converters possess outstanding electrical and thermal performance, as well as extremely high reliability under highly stressful operating conditions.
PDF
/
Inventory: 8901
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 31.8mm
Height 10.16mm
Technical
Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 5.5V
Current - Output 2 100mA
Total Power Output-Max 2W
Current - Output 1 100mA
Voltage - Output 2 -5V
Output Power 2W
Current - Output (Max) 100mA 100mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Output 1 5V
Max Output Current 100mA
Output Voltage 5V
Voltage - Isolation 6kV
Efficiency 42%
Number of Outputs 2
JESD-30 Code R-PDMA-P9
Reach Compliance Code unknown
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series DC02S/D (2W)
Published 2012
Packaging Tube
Operating Temperature -25°C~75°C
Physical
Package / Case 24-DIP Module, 9 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
