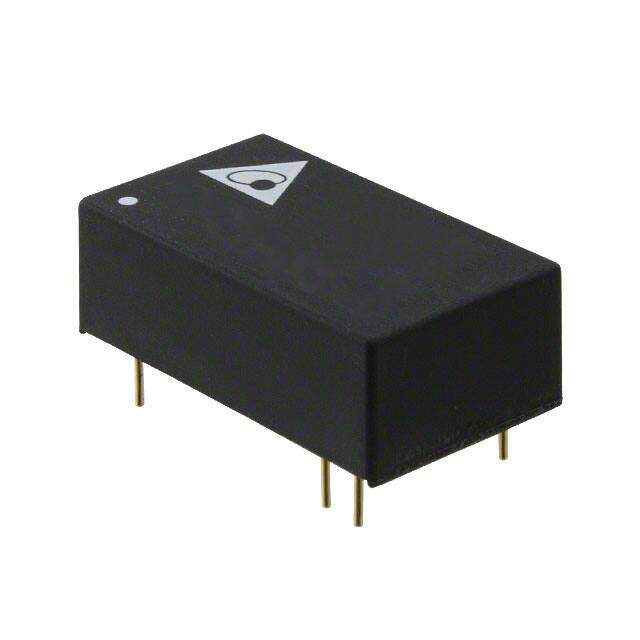

DB02S1212A
RoHS
RoHS compliant
RoHS compliantPackage 16-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DCDC CONVERTER 12VOUT 2W
PDF
/
Inventory: 1199
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 16-DIP Module, 6 Leads
Technical
Operating Temperature -40°C~80°C
Packaging Tube
Published 2012
Series DB02S/D (2W)
Size / Dimension 0.94Lx0.54W x 0.30 H 23.9mmx13.7mmx7.5mm
Feature SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Max Operating Temperature 80°C
Min Operating Temperature -40°C
Applications Medical
Power (Watts) 2W
Max Power Dissipation 2W
Number of Outputs 1
Efficiency 80%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 18V
Output Voltage 12V
Max Output Current 167mA
Voltage - Output 1 12V
Voltage - Input (Min) 9V
Current - Output (Max) 167mA
Output Current 167mA
Output Power 2W
Min Input Voltage 9V
Max Input Voltage 18V
Current - Output 1 167mA
Max Input Voltage (DC) 18V
Min Input Voltage (DC) 9V
Dimensions
Height 7.874mm
Length 23.876mm
Width 13.716mm
Compliance
RoHS Status ROHS3 Compliant
