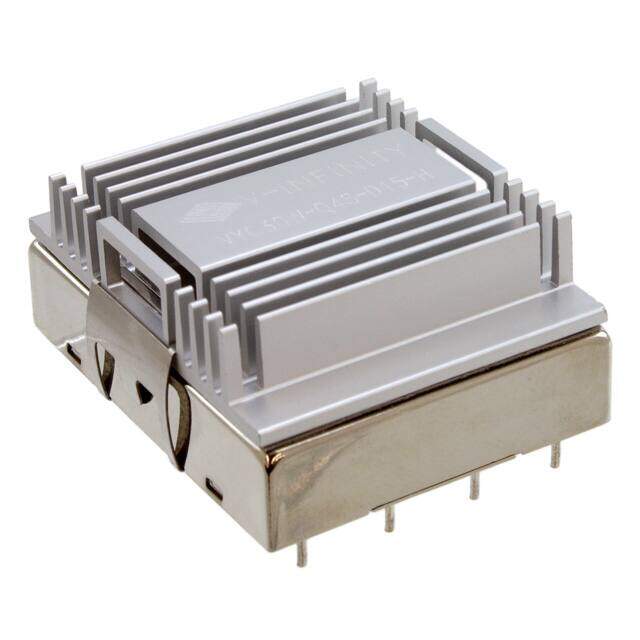

VYC30W-Q48-D15-H
RoHS
/
Package 7-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTER +/-15V 1A THRU
PDF
/
Inventory: 4351
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-DIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series VYC30W (30W)
Size / Dimension 2.00Lx1.82W x 0.91 H 50.8mmx46.2mmx23.0mm
Feature Remote On/Off, UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 30W
Reach Compliance Code unknown
Number of Outputs 2
Efficiency 87%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Max Output Current 1A
Voltage - Output 1 15V
Voltage - Input (Min) 18V
Current - Output (Max) 1A 1A
Control Features Enable, Active High
Voltage - Output 2 -15V
Dimensions
Height 23.114mm
Compliance
RoHS Status RoHS Compliant
