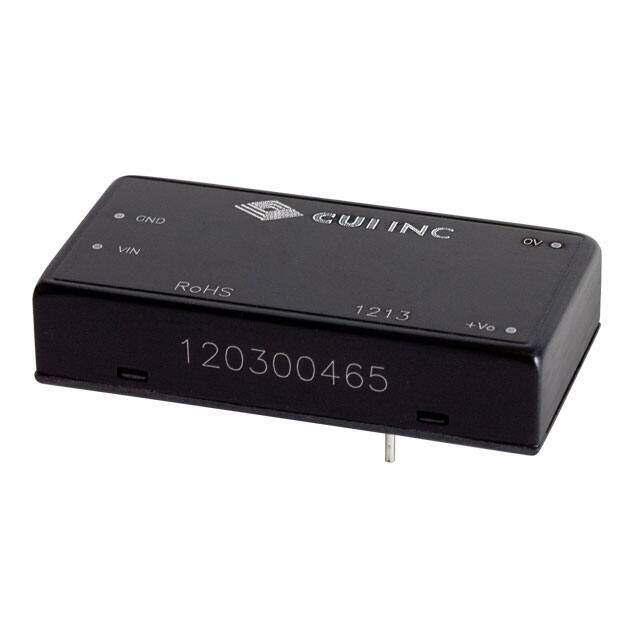

VYB10W-Q24-D12
RoHS
/
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC 10W +/-12V 416MA
PDF
/
Inventory: 3083
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Length 50.8mm
Height 11.176mm
Technical
Isolation Isolated
Voltage - Output 2 -12V
Output Power 10W
Current - Output (Max) 416mA 416mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 9V
Max Output Current 416mA
Output Voltage 12V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 82%
Number of Outputs 2
JESD-30 Code R-XDMA-P5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 10W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature SCP
Size / Dimension 2.00Lx1.00W x 0.44 H 50.8mmx25.4mmx11.2mm
Series VYB10W (10W)
Published 2012
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 6-DIP Module
Mounting Type Through Hole
Mount Through Hole
