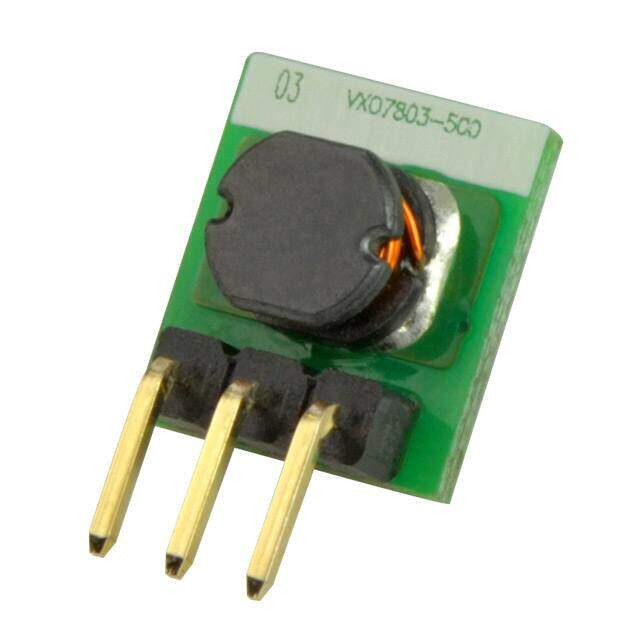

VXO78012-500 image
Favorite
VXO78012-500 image
Favorite

VXO78012-500

CUI Inc.
RoHS
RoHS RoHS compliant
Package 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description VXO78-500 Series 24 / 12 Vin ±12 Vout Non-Isolated DC Switching Regulator
PDF
/
Inventory: 1
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Mounting Type Through Hole
Package / Case 3-SIP Module

Technical

Operating Temperature -40°C~85°C With Derating
Current - Output (Max) 500mA or 150mA
Voltage - Input (Min) 15V or 8V
Voltage - Output 1 12V or -12V
Voltage - Input (Max) 36V or 24V
Efficiency 94%
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power (Watts) 6W
Applications ITE (Commercial)
Type Linear Regulator Replacement
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.39Lx0.28W x 0.43 H 10.0mmx7.2mmx11.0mm
Series VXO78-500

Compliance

RoHS Status RoHS Compliant
