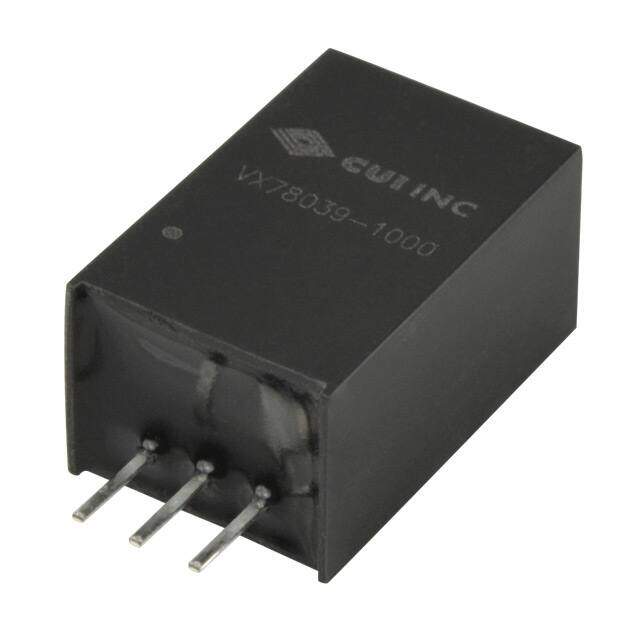

VX78039-1000 image
Favorite
VX78039-1000 image
Favorite

VX78039-1000

CUI Inc.
RoHS
RoHS RoHS compliant
Package 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 9V 9W
PDF
/
Buying Options
Total Price: USD $2.98
Unit Price: USD $2.9832
≥1 USD $2.9832
≥10 USD $2.94448
≥100 USD $2.90136
≥500 USD $2.730402
≥1000 USD $2.645104
Inventory: 237
Minimum: 1
-
+

Technical Details

Technical

Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PSMA-T3
Number of Outputs 1
Efficiency 95%
Voltage - Input (Max) 36V
Output Voltage 9V
Voltage - Output 1 9V
Voltage - Input (Min) 13V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 1A
Total Power Output-Max 9W
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Power (Watts) 9W
Applications ITE (Commercial)
Type Linear Regulator Replacement
Number of Terminations 3
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Size / Dimension 0.45Lx0.35W x 0.69 H 11.5mmx9.0mmx17.5mm
Series VX78-1000
Operating Temperature -40°C~85°C With Derating

Dimensions

Width 9mm

Compliance

RoHS Status RoHS Compliant

Physical

Surface Mount NO
Package / Case 3-SIP Module
Mounting Type Through Hole

Supply Chain

Factory Lead Time 9 Weeks
