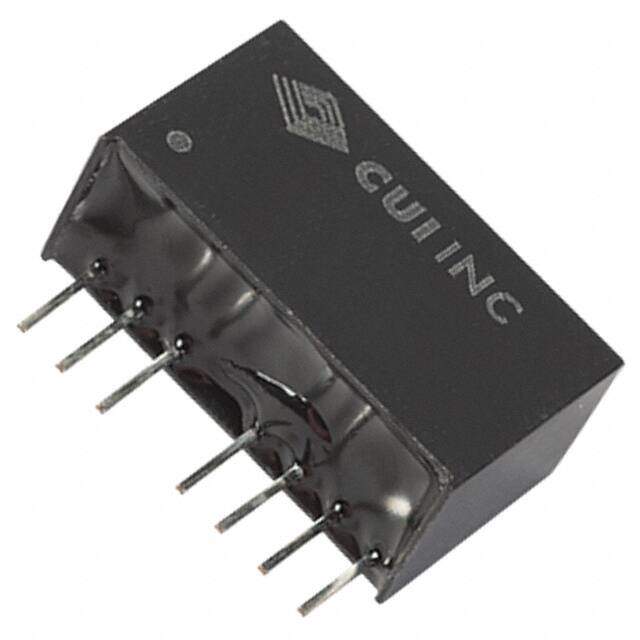

VWRAS2-D24-D9-SIP
RoHS
/
Package 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC +/-9V OUT 2W
PDF
/
Inventory: 1126
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Technical
Operating Temperature -40°C~85°C
Published 2013
Series VWRAS2-SIP (2W)
Size / Dimension 0.87Lx0.37W x 0.47 H 22.0mmx9.5mmx12.0mm
Feature SCP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 2W
Number of Outputs 2
Efficiency 78%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 36V
Output Voltage 9V
Max Output Current 111mA
Voltage - Input (Min) 18V
Current - Output (Max) 111mA 111mA
Output Power 2W
Voltage - Output 2 -9V
Isolation Isolated
Dimensions
Height 11.938mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
