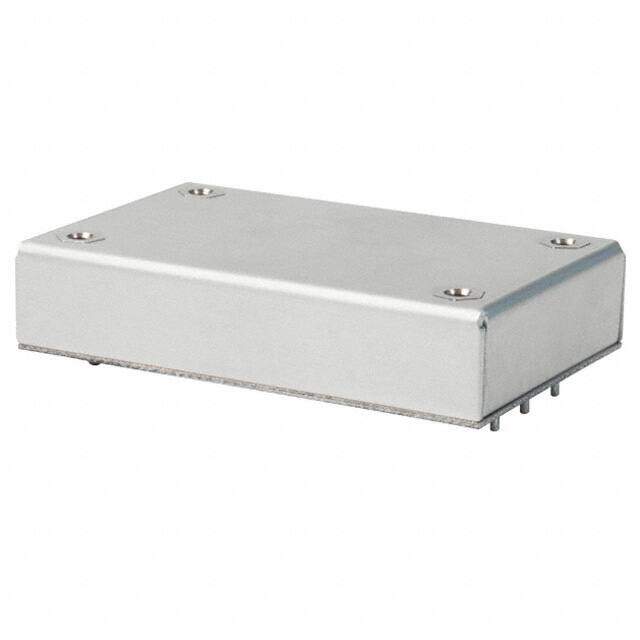

VQE50W-Q48-S5
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC 5V 10A 50W
PDF
/
Inventory: 8059
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-DIP Module
Weight 63.000011g
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2016
Series VQE50W (50W)
Size / Dimension 2.28Lx1.45W x 0.50 H 57.9mmx36.8mmx12.7mm
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Max Power Dissipation 50W
Number of Outputs 1
Approval Agency CE, UL
Efficiency 92%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 5V
Max Output Current 10A
Voltage - Output 1 5V
Voltage - Input (Min) 18V
Input Voltage-Nom 48V
Output Power 50W
Control Features Enable, Active High
Dimensions
Height 12.7mm
Length 57.9mm
Width 36.8mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
