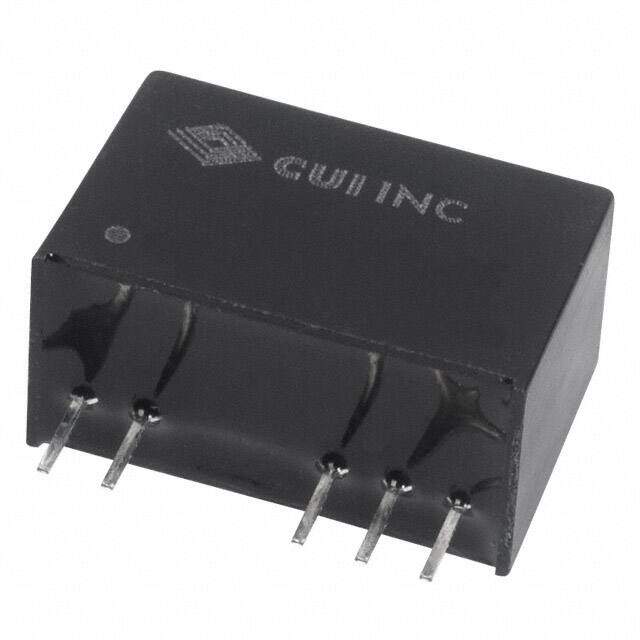

VQA-S15-D15-SIP
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 15V -8.7V 2W
PDF
/
Buying Options
Total Price: USD $7.62
Unit Price: USD $7.6208
≥1 USD $7.6208
≥10 USD $7.51344
≥100 USD $7.40344
Inventory: 46
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 9.8mm
Length 19.5mm
Height 12.446mm
Technical
Current - Output 2 40mA
Isolation Isolated
Total Power Output-Max 1.548W
Current - Output 1 80mA
Output Power 1W
Current - Output (Max) 80mA 40mA
Trim/Adjustable Output NO
Input Voltage-Nom 15V
Voltage - Input (Min) 14.5V
Voltage - Output 1 15V
Max Output Current 40mA
Output Voltage -8.7V
Voltage - Input (Max) 15.5V
Voltage - Isolation 3kV
Efficiency 80%
Number of Outputs 2
JESD-30 Code R-PSMA-T5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 2W
Additional Feature ALSO AVAILABLE WITH -8.7 DC OUTPUT VOLTAGE
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.77Lx0.39W x 0.49 H 19.5mmx9.8mmx12.5mm
Series VQA
Published 2016
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Weight 4.299999g
Package / Case 7-SIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
