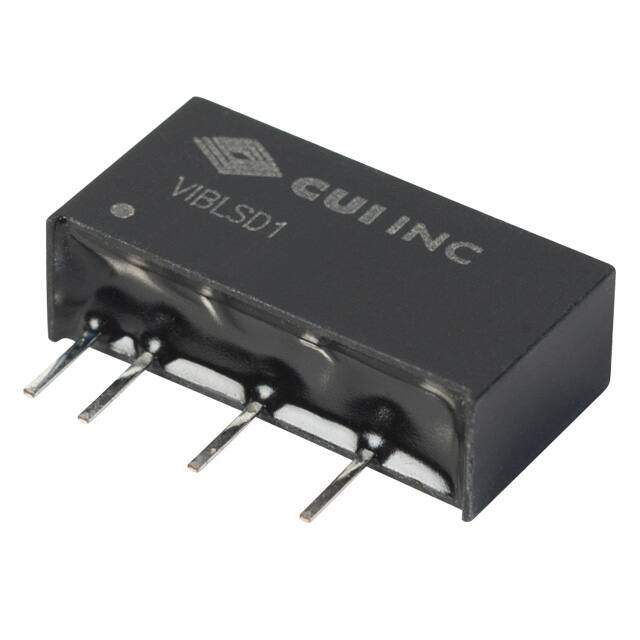

VIBLSD1-S5-S5-SIP
RoHS
RoHS compliant
RoHS compliantPackage 6-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC 5V REG 0.75W
PDF
/
Buying Options
Total Price: USD $11.55
Unit Price: USD $11.553409
≥1 USD $11.553409
≥10 USD $10.899439
≥100 USD $10.28249
≥500 USD $9.700466
≥1000 USD $9.151377
Inventory: 1603
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 10.16mm
Technical
Isolation Isolated
Total Power Output-Max 1W
Current - Output 1 200mA
Output Power 1W
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.75V
Voltage - Output 1 5V
Max Output Current 150mA
Output Voltage 5V
Voltage - Input (Max) 5.25V
Voltage - Isolation 1kV
Efficiency 69%
Number of Outputs 1
JESD-30 Code R-PSMA-P4
Pin Count 6/4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 750mW
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.77Lx0.24W x 0.40 H 19.6mmx6.0mmx10.2mm
Series VIBLSD1-SIP (1W)
Published 1998
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 2.099991g
Package / Case 6-SIP Module, 4 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
