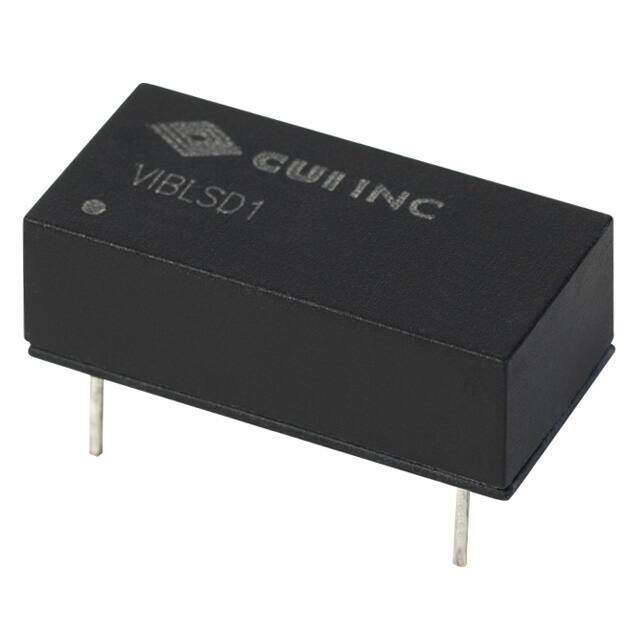

VIBLSD1-S5-S15-DIP
RoHS
/
Package 14-DIP Module (300 mil, 5 Leads)
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC 15V REG OUT 1W
PDF
/
Inventory: 9332
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Length 20mm
Height 6.604mm
Technical
Isolation Isolated
Total Power Output-Max 1W
Output Power 1W
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.75V
Voltage - Output 1 15V
Max Output Current 67mA
Output Voltage 15V
Voltage - Input (Max) 5.25V
Voltage - Isolation 1kV
Efficiency 72%
Number of Outputs 1
JESD-30 Code R-PDMA-T5
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature SCP
Size / Dimension 0.80Lx0.39W x 0.26 H 20.4mmx10.0mmx6.5mm
Series VIBLSD1-DIP (1W)
Published 2011
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 2.400014g
Package / Case 14-DIP Module (300 mil, 5 Leads)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 14 Weeks
