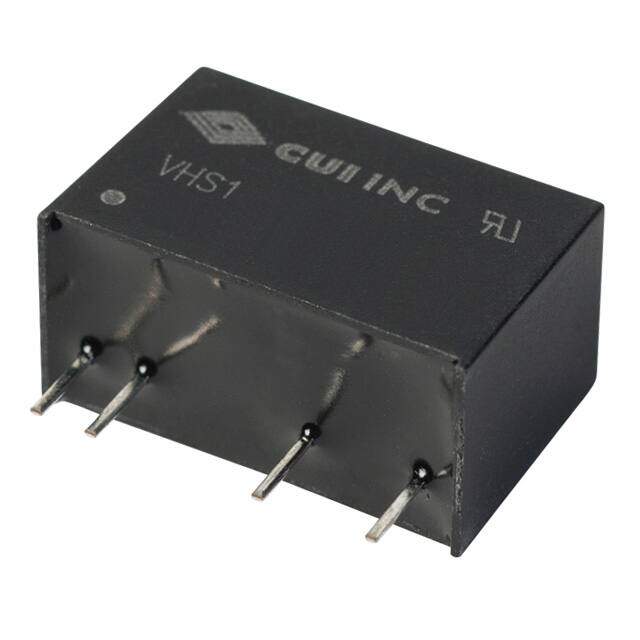

VHS1-S12-S5-SIP
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC 5V OUT 1W
PDF
/
Buying Options
Total Price: USD $10.53
Unit Price: USD $10.5336
≥1 USD $10.5336
≥10 USD $10.44912
≥100 USD $10.36992
≥500 USD $10.210464
≥1000 USD $9.891376
≥3000 USD $8.9342
Inventory: 1195
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 9.8mm
Height 12.446mm
Technical
Total Power Output-Max 1W
Current - Output 1 200mA
Output Power 1W
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 10.8V
Max Output Current 200mA
Output Voltage 5V
Voltage - Input (Max) 13.2V
Voltage - Isolation 6kV
Efficiency 75%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-PSMA-T5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Subcategory Other Analog ICs
Applications Medical
Type Isolated Module
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.77Lx0.39W x 0.49 H 19.5mmx9.8mmx12.5mm
Series VHS1-SIP (1W)
Published 2011
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Weight 4.20001g
Package / Case 7-SIP Module, 4 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
