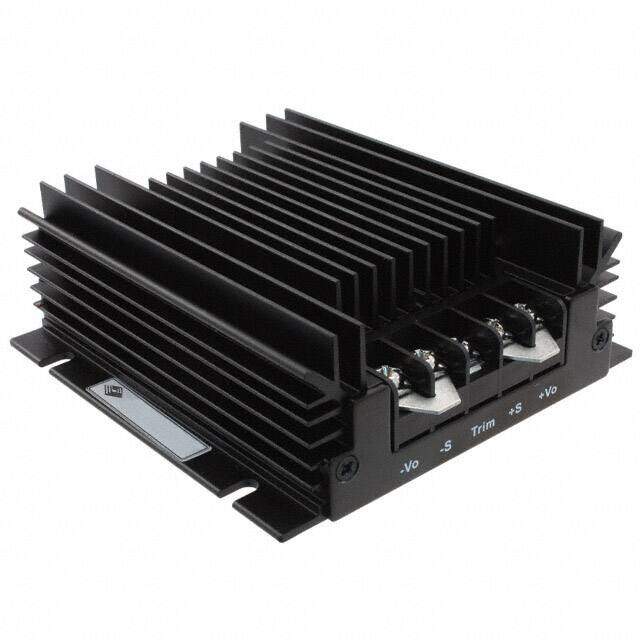

VHK50W-Q48-S24
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
CONVERTER DC-DC 24V 2.08A 50W
PDF
/
Buying Options
Total Price: USD $115
Unit Price: USD $114.9984
≥1 USD $114.9984
≥10 USD $114.08672
≥100 USD $113.17328
≥500 USD $105.8717
≥1000 USD $102.220941
Inventory: 100
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case Module
Weight 502.126754g
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2016
Series VHK50W (50W)
Size / Dimension 4.23Lx4.01W x 1.50 H 107.5mmx101.8mmx38.0mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Type Enclosed
Max Power Dissipation 50W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-MXFM-X9
Number of Outputs 1
Efficiency 83%
Voltage - Input (Max) 75V
Output Voltage 24V
Voltage - Input (Min) 18V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Current - Output (Max) 2.08A
Output Power 50W
Isolation Isolated
Dimensions
Height 38.1mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
