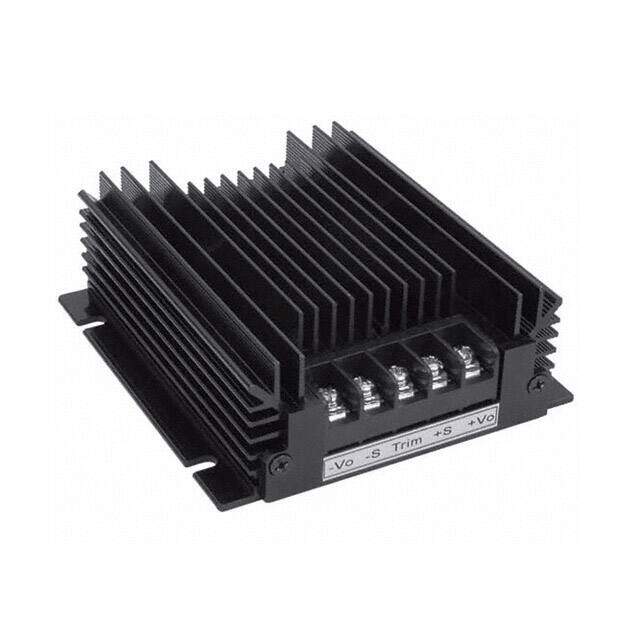

VHK200W-Q48-S48
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
CONVERTER DC-DC 48V 4.2A 200W
PDF
/
Buying Options
Total Price: USD $166.21
Unit Price: USD $166.2144
≥1 USD $166.2144
Inventory: 294
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case Module
Weight 502.126754g
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2016
Series VHK200W (200W)
Size / Dimension 4.23Lx4.01W x 1.50 H 107.5mmx101.8mmx38.0mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Type Enclosed
Max Power Dissipation 200W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XXFM-X9
Number of Outputs 1
Efficiency 88%
Voltage - Input (Max) 75V
Output Voltage 48V
Voltage - Input (Min) 18V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Current - Output (Max) 4.2A
Output Power 200W
Isolation Isolated
Dimensions
Height 38.1mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
