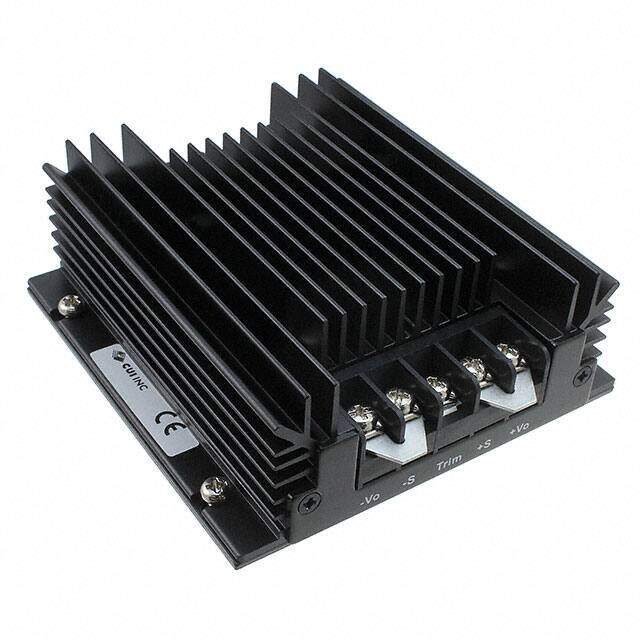

VHK200W-Q24-S48-DIN
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVERTER 48V 200W
PDF
/
Inventory: 9442
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Package / Case Module
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2016
Series VHK200W-DIN (200W)
Size / Dimension 4.23Lx4.01W x 2.07 H 107.4mmx101.9mmx52.6mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Type Enclosed
Max Power Dissipation 200W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-MXFM-X9
Number of Outputs 1
Approval Agency CE
Efficiency 87%
Voltage - Input (Max) 36V
Output Voltage 48V
Voltage - Output 1 48V
Voltage - Input (Min) 10V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Current - Output (Max) 4.2A
Output Power 200W
Dimensions
Height 52.578mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
