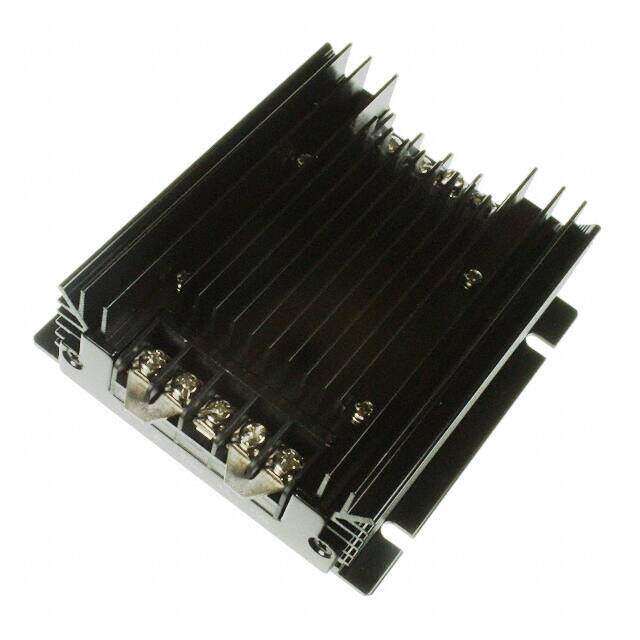

VHK100W-Q24-S28
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
CONVERTER DC-DC 28V 3.57A 100W
PDF
/
Buying Options
Total Price: USD $161.34
Unit Price: USD $161.3392
≥1 USD $161.3392
≥10 USD $158.73264
≥100 USD $156.13136
≥500 USD $145.722227
Inventory: 62
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case Module
Weight 502.126754g
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series VHK100W (100W)
Size / Dimension 4.23Lx4.01W x 1.50 H 107.4mmx101.9mmx38.1mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Type Enclosed
Max Power Dissipation 100W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-MXFM-X9
Number of Outputs 1
Efficiency 86%
Voltage - Input (Max) 36V
Output Voltage 28V
Voltage - Input (Min) 9V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Current - Output (Max) 3.57A
Output Power 100W
Isolation Isolated
Dimensions
Height 38.1mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
