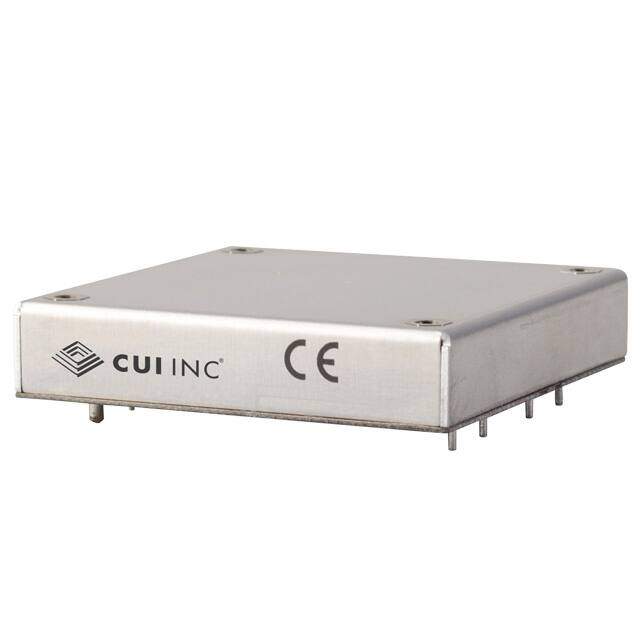

VHE100W-Q48-S5
RoHS
RoHS compliant
RoHS compliantPackage 9-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC 5V 20A 100W
PDF
/
Buying Options
Total Price: USD $147.17
Unit Price: USD $147.17499
≥1 USD $147.17499
≥10 USD $138.844329
≥100 USD $130.985214
≥500 USD $123.570956
≥1000 USD $116.576375
Inventory: 1112
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 9-DIP Module
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2016
Series VHE100W (100W)
Size / Dimension 2.40Lx2.28W x 0.50 H 61.0mmx57.9mmx12.7mm
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Type Isolated Module
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Max Power Dissipation 100W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Terminal Pitch 7.62mm
JESD-30 Code R-XDMA-P9
Number of Outputs 1
Approval Agency CE, UL
Efficiency 92%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 5V
Max Output Current 20A
Voltage - Output 1 5V
Voltage - Input (Min) 18V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Output Power 100W
Control Features Enable, Active High
Dimensions
Height 12.7mm
Width 57.9mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
