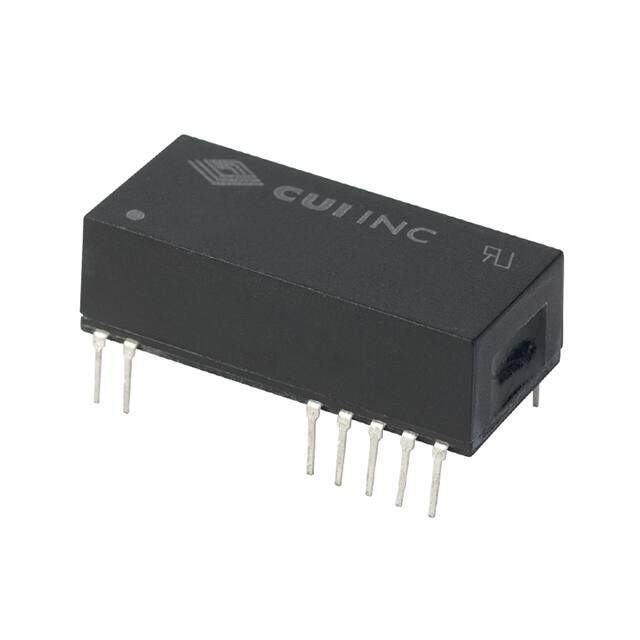

VHD1-S5-S5-DIP image
Favorite
VHD1-S5-S5-DIP image
Favorite

VHD1-S5-S5-DIP

CUI Inc.
RoHS
/
Package 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description Isolated DC/DC Converters dc-dc isolated, 1W, 4.5 5.5Vdc input, 5Vdc, 200mA, unregulatedoutput, DIP
PDF
/
Inventory: 1083
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Length 32.3mm
Height Seated (Max) 9.65mm

Technical

Total Power Output-Max 1W
Output Power 1W
Current - Output (Max) 200mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Input (Max) 5.5V
Voltage - Isolation 6kV
Efficiency 68%
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature SCP
Size / Dimension 1.27Lx0.58W x 0.37 H 32.3mmx14.7mmx9.4mm
Series VHD1-DIP (1W)
Published 2016
Operating Temperature -40°C~85°C

Physical

Surface Mount NO
Package / Case 24-DIP Module, 8 Leads
Mounting Type Through Hole
