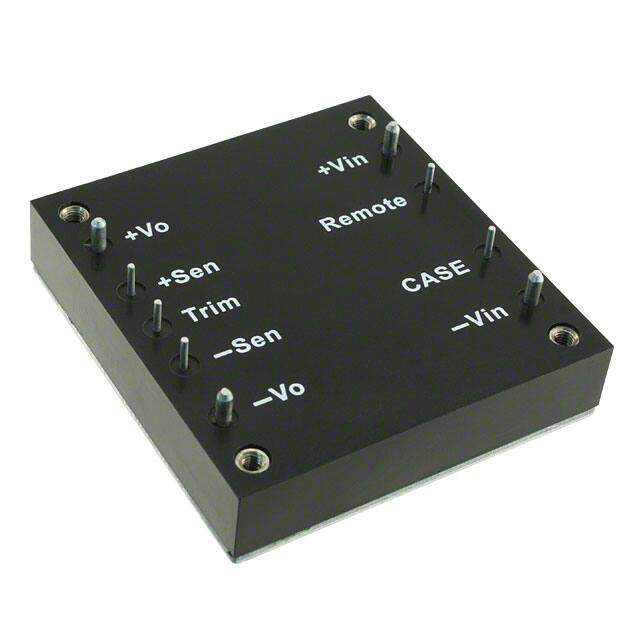

VHB350-D48-S12 image
Favorite
VHB350-D48-S12 image
Favorite

VHB350-D48-S12

CUI Inc.
RoHS
RoHS RoHS compliant
Package 9-DIP Module, 1/2 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description CONV DC/DC 350W 12V 29.2A PCB
PDF
/
Buying Options
Total Price: USD $146.07
Unit Price: USD $146.0712
≥1 USD $146.0712
≥10 USD $143.71456
≥100 USD $141.3588
≥500 USD $127.223254
Inventory: 422
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case 9-DIP Module, 1/2 Brick
Weight 114.00001g

Technical

Operating Temperature -40°C~100°C
Packaging Box
Published 2016
Series VHB350 (350W)
Size / Dimension 2.40Lx2.28W x 0.52 H 61.0mmx57.9mmx13.2mm
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Type Isolated Module
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Max Power Dissipation 350W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
JESD-30 Code R-PDMA-P9
Number of Outputs 1
Approval Agency UL
Efficiency 92.5%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 12V
Max Output Current 29.2A
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Output Power 350W
Control Features Enable, Active High
Current - Output 1 29.2A
Isolation Isolated

Dimensions

Height 13.208mm
Width 57.9mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
