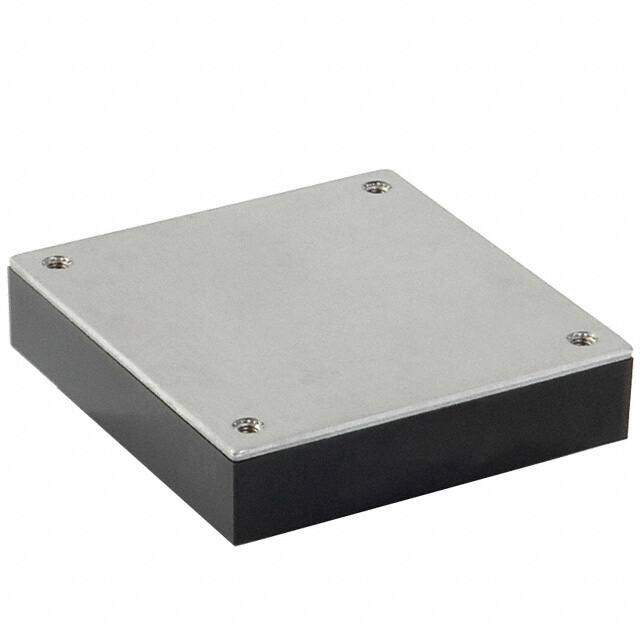

VHB150W-Q24-S5
RoHS
RoHS compliant
RoHS compliantPackage 9-DIP Module, 1/2 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC 150W 5V 30A
PDF
/
Buying Options
Total Price: USD $145.14
Unit Price: USD $145.141922
≥1 USD $145.141922
≥10 USD $136.926338
≥100 USD $129.17579
≥500 USD $121.863961
≥1000 USD $114.965992
Inventory: 9177
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 9-DIP Module, 1/2 Brick
Weight 94.999989g
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2015
Series VHB150W (150W)
Size / Dimension 2.40Lx2.28W x 0.52 H 61.0mmx57.9mmx13.2mm
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 9
Type Isolated Module
Applications ITE (Commercial)
Additional Feature SEATED HGT-NOM
Subcategory Other Analog ICs
Max Power Dissipation 150W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 7.62mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-P9
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 87%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 36V
Output Voltage 5V
Max Output Current 30A
Voltage - Output 1 5V
Voltage - Input (Min) 9V
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Output Power 150W
Control Features Enable, Active High
Isolation Isolated
Dimensions
Height 13.208mm
Width 57.9mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
