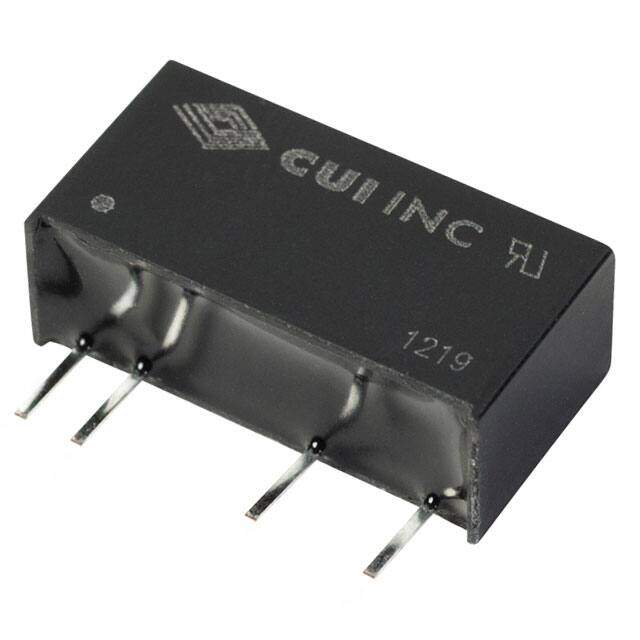

VFSD2-S12-S5-SIP
RoHS
/
Package 7-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC 2W 5V 400MA
PDF
/
Inventory: 1266
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 7mm
Height 9.906mm
Technical
Isolation Isolated
Total Power Output-Max 2W
Output Power 2W
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 10.8V
Voltage - Output 1 5V
Max Output Current 400mA
Output Voltage 5V
Voltage - Input (Max) 13.2V
Voltage - Isolation 3kV
Efficiency 80%
Number of Outputs 1
JESD-30 Code R-PSMA-T7
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 2W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature SCP
Size / Dimension 0.77Lx0.28W x 0.39 H 19.6mmx7.0mmx10.0mm
Series VFSD2-SIP (2W)
Published 2012
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 7-SIP Module, 4 Leads
Mounting Type Through Hole
Mount Through Hole
