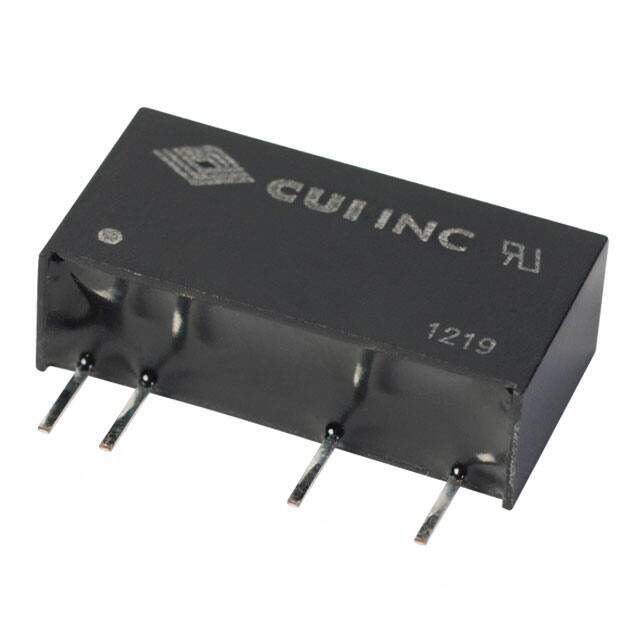

VFSD1-S24-S5-SIP image
Favorite
VFSD1-S24-S5-SIP image
Favorite

VFSD1-S24-S5-SIP

CUI Inc.
RoHS
/
Package 7-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description CONVERTER DC/DC 5V OUT 1W
PDF
/
Buying Options
Total Price: USD $13.47
Unit Price: USD $13.471667
≥1 USD $13.471667
≥200 USD $5.375013
≥500 USD $5.196458
≥1000 USD $5.107181
Inventory: 1382
Minimum: 1
-
+

Technical Details

Technical

Trim/Adjustable Output NO
Output Power 1W
Total Power Output-Max 1W
Isolation Isolated
Input Voltage-Nom 24V
Voltage - Input (Min) 21.6V
Voltage - Output 1 5V
Max Output Current 200mA
Output Voltage 5V
Voltage - Input (Max) 26.4V
Voltage - Isolation 3kV
Efficiency 79%
Number of Outputs 1
JESD-30 Code R-PSMA-P4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Size / Dimension 0.77Lx0.24W x 0.39 H 19.6mmx6.0mmx10.0mm
Series VFSD1-SIP (1W)
Published 2011
Operating Temperature -40°C~85°C

Dimensions

Height 9.906mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free

Physical

Package / Case 7-SIP Module, 4 Leads
Mounting Type Through Hole
Mount Through Hole
