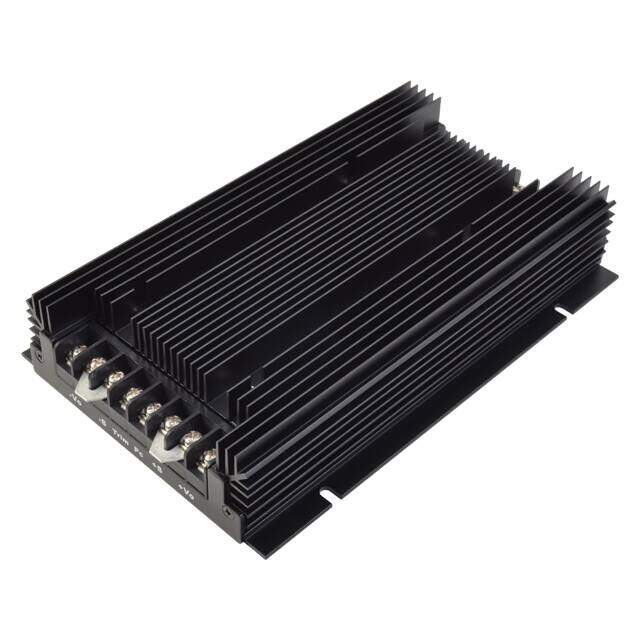

VFK600-D48-S48
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVRT ISO 1.5KV 48V 12.5A
PDF
/
Buying Options
Total Price: USD $369.58
Unit Price: USD $369.580055
≥1 USD $369.580055
≥10 USD $348.66042
≥100 USD $328.924937
≥500 USD $310.306539
≥1000 USD $292.742018
Inventory: 1098
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case Module
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2016
Series VFK600 (700W)
Size / Dimension 7.84Lx4.99W x 1.54 H 199.1mmx126.8mmx39.1mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 14
Type Enclosed
Max Power Dissipation 600W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 1
Efficiency 92%
Voltage - Input (Max) 75V
Output Voltage 48V
Voltage - Output 1 48V
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output YES
Current - Output (Max) 12.5A
Output Power 600W
Dimensions
Height 39.116mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
