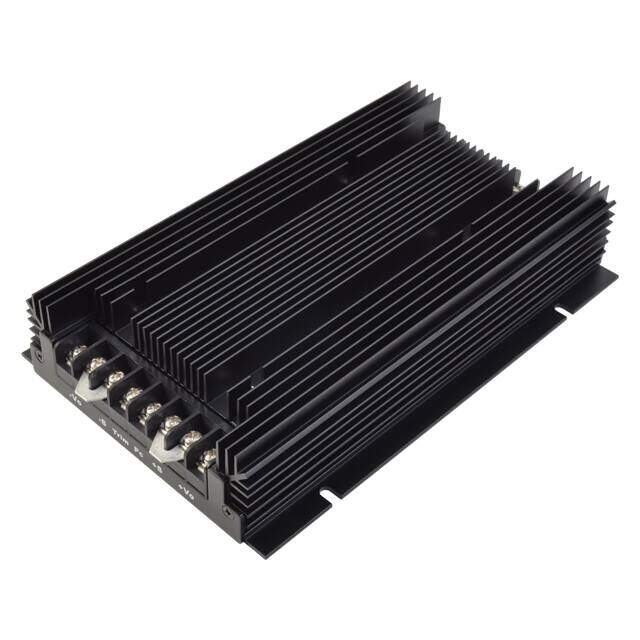

VFK600-D24-S28
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC/DC CONVRT ISO 1.5KV 28V 21.5A
PDF
/
Buying Options
Total Price: USD $412.46
Unit Price: USD $412.456
≥1 USD $412.456
≥10 USD $398.70336
≥100 USD $391.82953
Inventory: 44
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 39.116mm
Technical
Output Power 600W
Current - Output (Max) 21.5A
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 28V
Output Voltage 28V
Voltage - Input (Max) 36V
Efficiency 90%
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 600W
Type Enclosed
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 7.84Lx4.99W x 1.54 H 199.1mmx126.8mmx39.1mm
Series VFK600 (700W)
Published 2016
Packaging Bulk
Operating Temperature -40°C~100°C
Physical
Package / Case Module
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 16 Weeks
