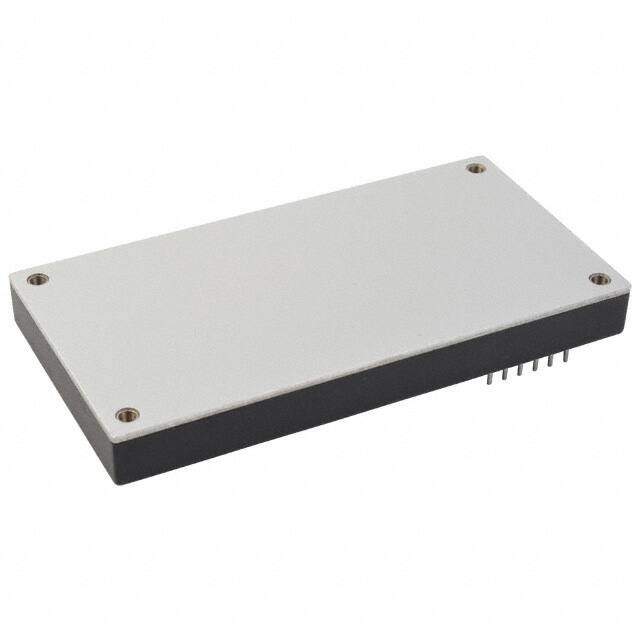

VFB600-D48-S48
RoHS
RoHS compliant
RoHS compliantPackage Full Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTER 48V 12.5A
PDF
/
Buying Options
Total Price: USD $235.08
Unit Price: USD $235.075863
≥1 USD $235.075863
≥10 USD $221.769685
≥100 USD $209.216682
≥500 USD $197.374227
≥1000 USD $186.202099
Inventory: 1110
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 12.7mm
Technical
Isolation Isolated
Control Features Enable, Active High
Output Power 600W
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 48V
Max Output Current 12.5A
Output Voltage 48V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 92%
Number of Outputs 1
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 600W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Size / Dimension 4.60Lx2.40W x 0.50 H 116.8mmx61.0mmx12.7mm
Series VFB600 (600W)
Published 2016
Packaging Bulk
Operating Temperature -40°C~100°C
Physical
Weight 259.999997g
Package / Case Full Brick
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
