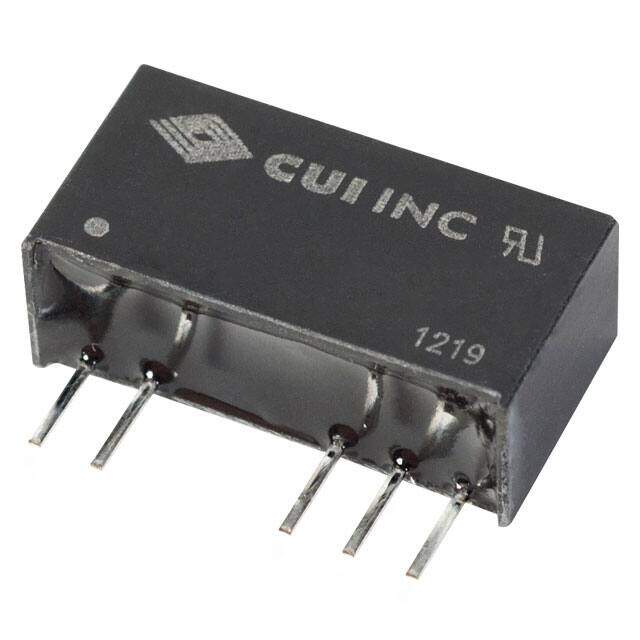

VESD2-S5-D5-SIP
RoHS
/
Package 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC 2W +/-5V 200MA
PDF
/
Inventory: 7337
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2012
Series VESD2-SIP (2W)
Size / Dimension 0.77Lx0.28W x 0.39 H 19.6mmx7.0mmx10.0mm
Feature SCP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 2W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PSMA-T5
Number of Outputs 2
Efficiency 82%
Voltage - Isolation 3kV
Voltage - Input (Max) 5.5V
Output Voltage 5V
Max Output Current 200mA
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 200mA 200mA
Output Power 2W
Voltage - Output 2 -5V
Total Power Output-Max 2W
Isolation Isolated
Dimensions
Height 9.906mm
Length 19.6mm
Width 7mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
