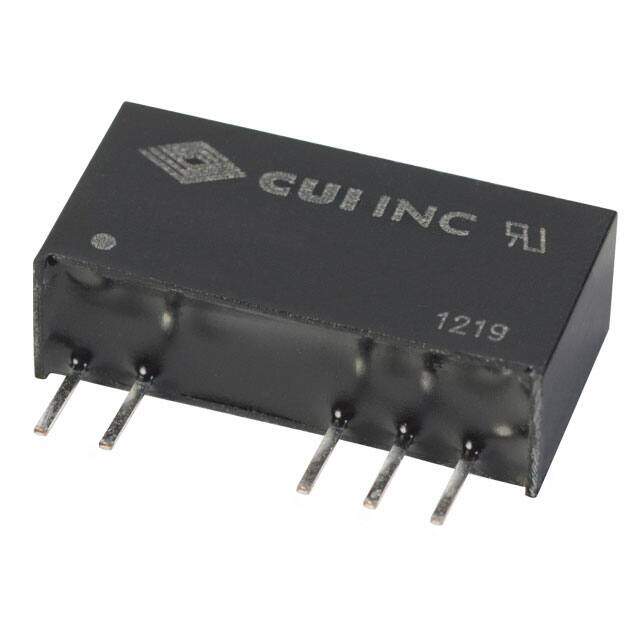

VESD1-S5-D5-SIP
RoHS
/
Package 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC +/-5V OUT 1W
PDF
/
Inventory: 4803
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Technical
Operating Temperature -40°C~85°C
Published 2007
Series VESD1-SIP (1W)
Size / Dimension 0.77Lx0.24W x 0.39 H 19.6mmx6.0mmx10.0mm
Feature SCP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Number of Functions 1
Pin Count 7/5
JESD-30 Code R-PSMA-P5
Number of Outputs 2
Efficiency 72%
Voltage - Isolation 3kV
Voltage - Input (Max) 5.5V
Output Voltage 5V
Max Output Current 100mA
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 100mA 100mA
Output Power 1W
Voltage - Output 2 -5V
Total Power Output-Max 1W
Isolation Isolated
Dimensions
Height 9.906mm
Length 19.6mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
