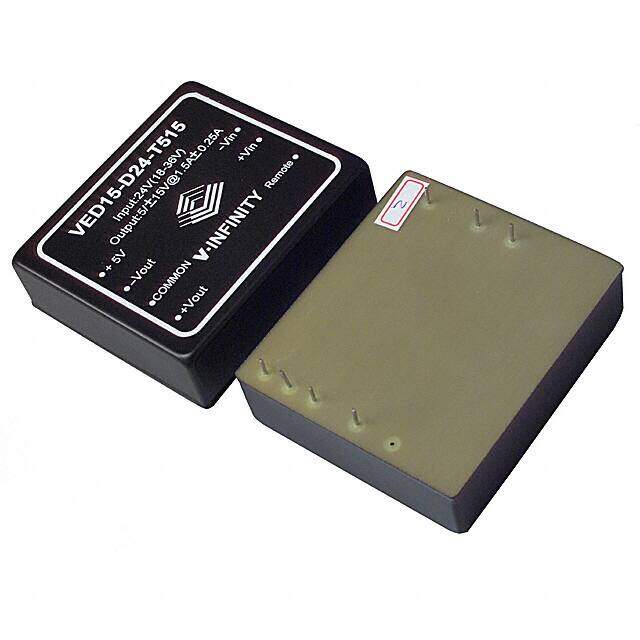

VED15-D24-T515
RoHS
/
Package 8-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V +/-15V 15W
PDF
/
Buying Options
Total Price: USD $304.82
Unit Price: USD $304.819932
≥1 USD $304.819932
≥200 USD $121.625743
≥500 USD $117.561005
≥1000 USD $115.553581
Inventory: 2882
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 8-DIP Module
Technical
Operating Temperature -25°C~71°C
Published 2004
Series VED15 (15W)
Size / Dimension 3.00Lx2.56W x 0.83 H 76.2mmx65.0mmx21.1mm
Feature Remote On/Off, SCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Type Isolated Module
Max Operating Temperature 71°C
Min Operating Temperature -25°C
Applications ITE (Commercial)
Power (Watts) 15W
Max Power Dissipation 15W
Number of Outputs 3
Efficiency 80%
Voltage - Isolation 500V
Voltage - Input (Max) 36V
Output Voltage 15V
Max Output Current 1.5A
Voltage - Output 1 5V
Voltage - Input (Min) 18V
Current - Output (Max) 1.5A 250mA 250mA
Control Features Enable, Active High
Voltage - Output 2 15V
Min Input Voltage 18V
Max Input Voltage 36V
Voltage - Output 3 -15V
Dimensions
Height 21.082mm
Length 76.2mm
Width 65.024mm
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
