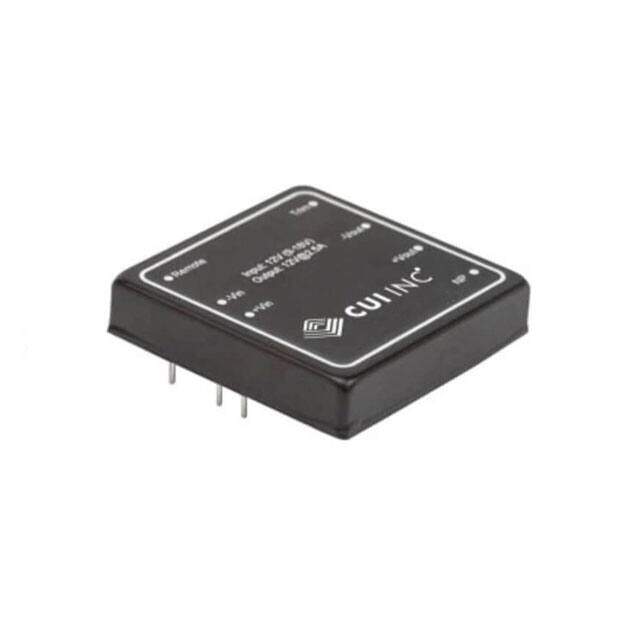

VCD40-D24-D15 image
Favorite
VCD40-D24-D15 image
Favorite

VCD40-D24-D15

CUI Inc.
RoHS
RoHS RoHS compliant
Package 9-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description Isolated DC/DC Converters dc-dc isolated, 40W, 18 36Vdc input,15Vdc,1.4A, dual output, DIP
PDF
/
Inventory: 9477
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 50.8mm
Length 50.8mm
Height Seated (Max) 10.7mm

Technical

Voltage - Output 2 -15V
Output Power 40W
Current - Output (Max) 1.4A 1.4A
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 92%
Number of Outputs 2
JESD-30 Code S-MDMA-P9
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Additional Feature ADDITIONAL -15 VOLTS OUTPUT AVAILABLE
Power (Watts) 42W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OTP, OVP, SCP
Size / Dimension 2.00Lx2.00W x 0.40 H 50.8mmx50.8mmx10.2mm
Series VCD40 (40W)
Operating Temperature -40°C~85°C

Physical

Surface Mount NO
Package / Case 9-DIP Module
Mounting Type Through Hole

Supply Chain

Factory Lead Time 12 Weeks
