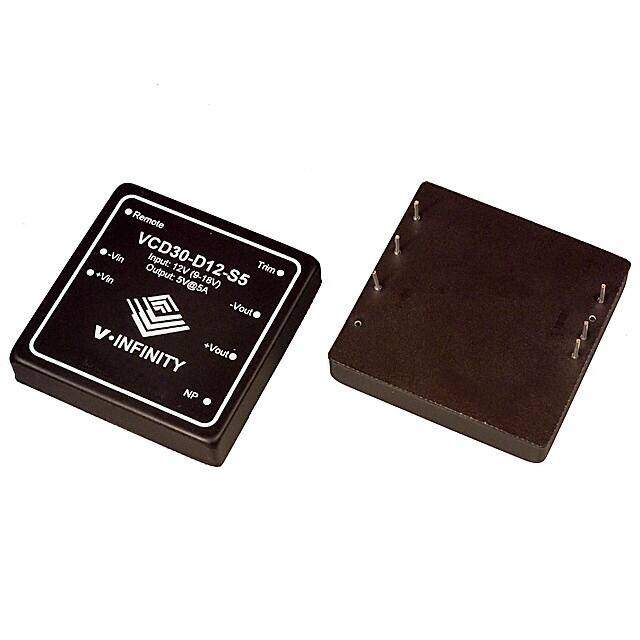

VCD30-D12-S5 image
Favorite
VCD30-D12-S5 image
Favorite

VCD30-D12-S5

CUI Inc.
RoHS
RoHS RoHS compliant
Package 8-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description CONVERTER DC/DC 5V OUT 30W
PDF
/
Inventory: 3856
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 50.8mm
Length 50.8mm
Height 10.16mm

Technical

Control Features Enable, Active High
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Input (Min) 9V
Max Output Current 5A
Output Voltage 5V
Voltage - Input (Max) 18V
Voltage - Isolation 500V
Efficiency 78%
Number of Outputs 1
JESD-30 Code S-XDMA-P8
Frequency 300kHz
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 25W
Power (Watts) 30W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 8
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Not For New Designs
Pbfree Code yes
Feature Remote On/Off, SCP
Size / Dimension 2.00Lx2.00W x 0.40 H 50.8mmx50.8mmx10.2mm
Series VCD30
Published 2011
Operating Temperature -25°C~71°C

Physical

Package / Case 8-DIP Module
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 8 Weeks
