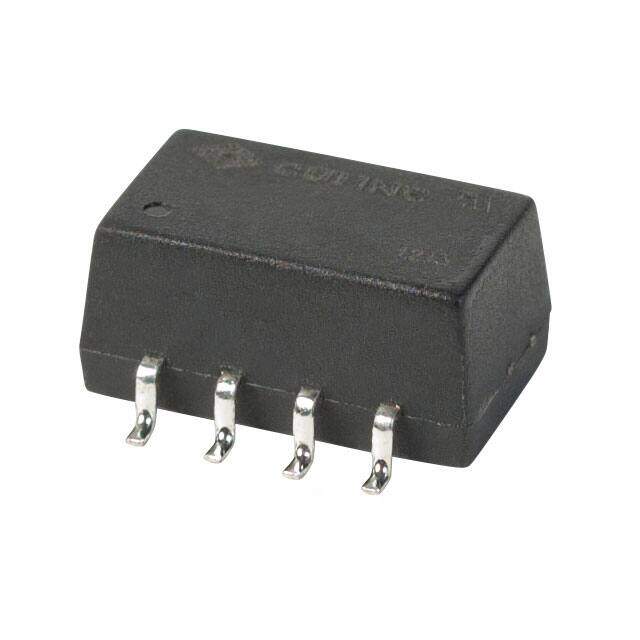

VBT1-S5-S5-SMT-TR image
Favorite
VBT1-S5-S5-SMT-TR image
Favorite

VBT1-S5-S5-SMT-TR

CUI Inc.
RoHS
/
Package 8-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 5V 1W
PDF
/
Inventory: 1181
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 7.5mm
Height 6.35mm

Technical

Isolation Isolated
Total Power Output-Max 1W
Output Power 1W
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 5V
Max Output Current 200mA
Output Voltage 5V
Voltage - Input (Max) 5.5V
Voltage - Isolation 1kV
Efficiency 70%
Number of Outputs 1
JESD-30 Code R-PDMA-G8
Pin Count 8
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature SCP
Size / Dimension 0.50Lx0.30W x 0.25 H 12.7mmx7.5mmx6.3mm
Series VBT1-SMT (1W)
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Weight 1.409992g
Package / Case 8-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
