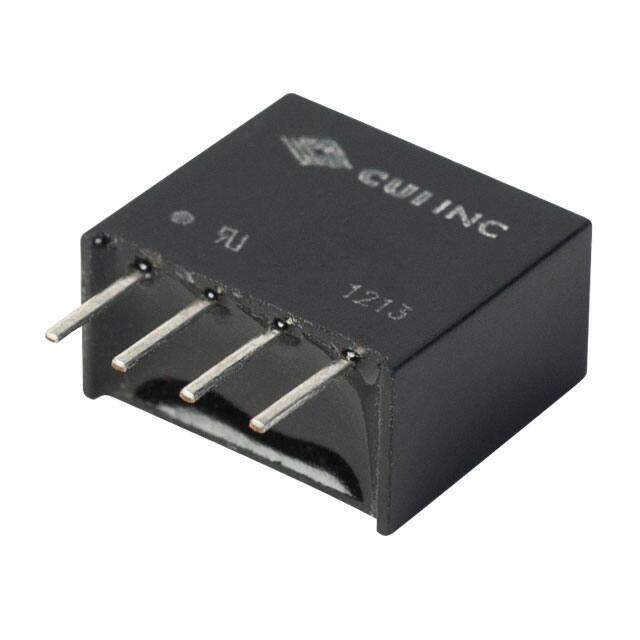

VBSD1-S5-S5-SIP image
Favorite
VBSD1-S5-S5-SIP image
Favorite

VBSD1-S5-S5-SIP

CUI Inc.
RoHS
/
Package 4-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 5V 1W
PDF
/
Inventory: 1184
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Height 9.906mm

Technical

Isolation Isolated
Total Power Output-Max 1W
Output Power 1W
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 5V
Max Output Current 200mA
Output Voltage 5V
Voltage - Input (Max) 5.5V
Voltage - Isolation 1kV
Efficiency 78%
Number of Outputs 1
JESD-30 Code R-PSMA-P4
Pin Count 4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature SCP
Size / Dimension 0.46Lx0.24W x 0.39 H 11.7mmx6.0mmx10.0mm
Series VBSD1-SIP (1W)
Published 2010
Operating Temperature -40°C~85°C

Physical

Package / Case 4-SIP Module
Mounting Type Through Hole
Mount Through Hole
