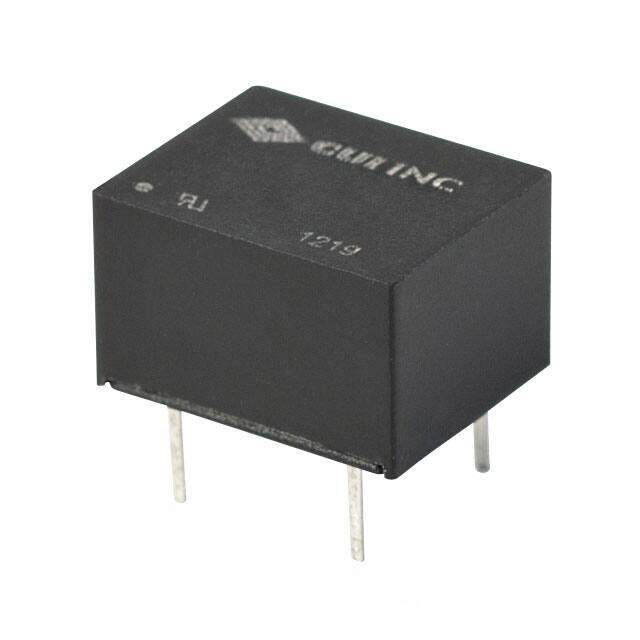

VBSD1-S24-S3.3-DIP
RoHS
/
Package 7-DIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 1W
PDF
/
Inventory: 7110
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 7.62mm
Technical
Isolation Isolated
Total Power Output-Max 1W
Output Power 1W
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 21.6V
Voltage - Output 1 3.3V
Max Output Current 300mA
Output Voltage 3.3V
Voltage - Input (Max) 26.4V
Voltage - Isolation 1kV
Efficiency 76%
Number of Outputs 1
JESD-30 Code R-XDMA-T4
Reach Compliance Code unknown
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature SCP
Size / Dimension 0.50Lx0.39W x 0.30 H 12.8mmx10.0mmx7.7mm
Series VBSD1-DIP (1W)
Operating Temperature -40°C~85°C
Physical
Package / Case 7-DIP Module, 4 Leads
Mounting Type Through Hole
Mount Through Hole
