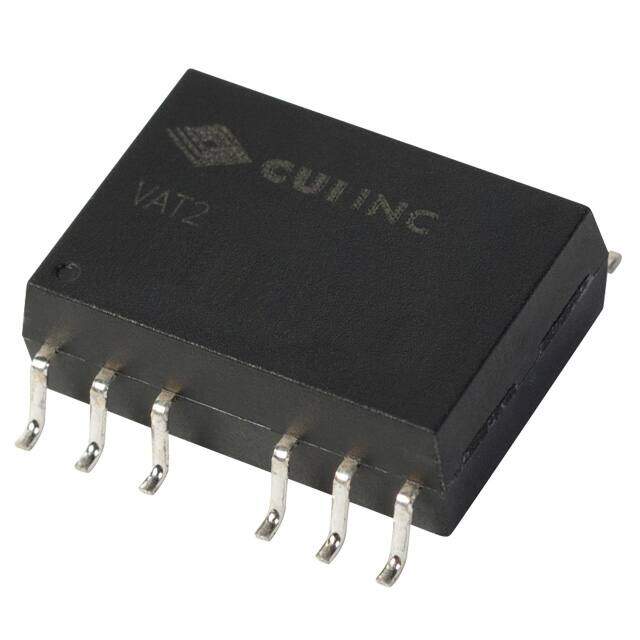

VAT2-S12-D5-SMT-TR
RoHS
/
Package 14-SMD Module, 12 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER DC/DC 2W +/-5V 200MA
PDF
/
Inventory: 8938
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Operating Temperature -40°C~85°C
Max Input Voltage 13.2V
Min Input Voltage 10.8V
Voltage - Output 2 -5V
Output Power 2W
Current - Output (Max) 200mA 200mA
Voltage - Input (Min) 10.8V
Voltage - Output 1 5V
Max Output Current 200mA
Voltage - Input (Max) 13.2V
Voltage - Isolation 1kV
Efficiency 83%
Number of Outputs 2
Max Power Dissipation 2W
Power (Watts) 2W
Applications ITE (Commercial)
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature SCP
Size / Dimension 0.70Lx0.50W x 0.23 H 17.8mmx12.7mmx5.8mm
Series VAT2-SMT (2W)
Published 2016
Packaging Tape & Reel (TR)
Physical
Package / Case 14-SMD Module, 12 Leads
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 12.7mm
Length 17.78mm
Height 5.842mm
