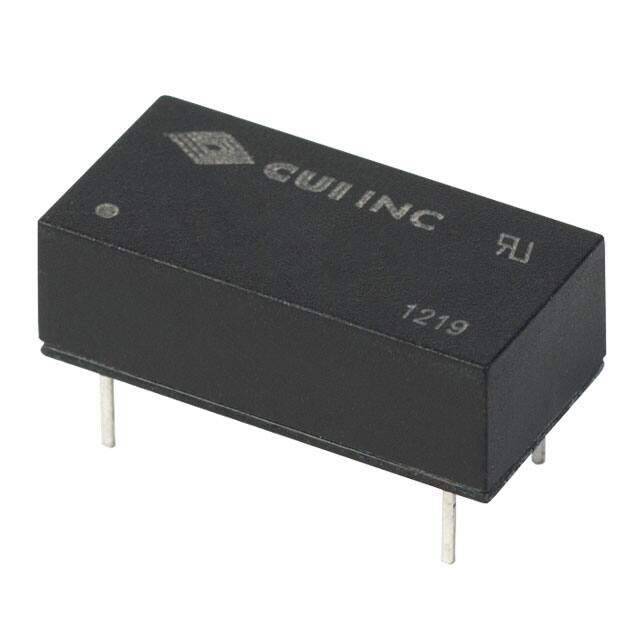

VASD1-S5-D9-DIP image
Favorite
VASD1-S5-D9-DIP image
Favorite

VASD1-S5-D9-DIP

CUI Inc.
RoHS
/
Package 14-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER +/-9V 1W
PDF
/
Inventory: 1451
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case 14-DIP Module, 6 Leads

Technical

Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series VASD1-DIP (1W)
Size / Dimension 0.79Lx0.39W x 0.28 H 20.1mmx9.9mmx7.2mm
Feature SCP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
Type Isolated Module
Applications ITE (Commercial)
Subcategory Other Analog ICs
Max Power Dissipation 1W
Terminal Position DUAL
JESD-30 Code R-PDIP-T6
Number of Outputs 2
Qualification Status Not Qualified
Efficiency 77%
Voltage - Isolation 1kV
Voltage - Input (Max) 5.5V
Output Voltage 9V
Max Output Current 56mA
Voltage - Output 1 9V
Voltage - Input (Min) 4.5V
Current - Output (Max) 56mA 56mA
Output Power 1W
Voltage - Output 2 -9V

Dimensions

Height 7.112mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
