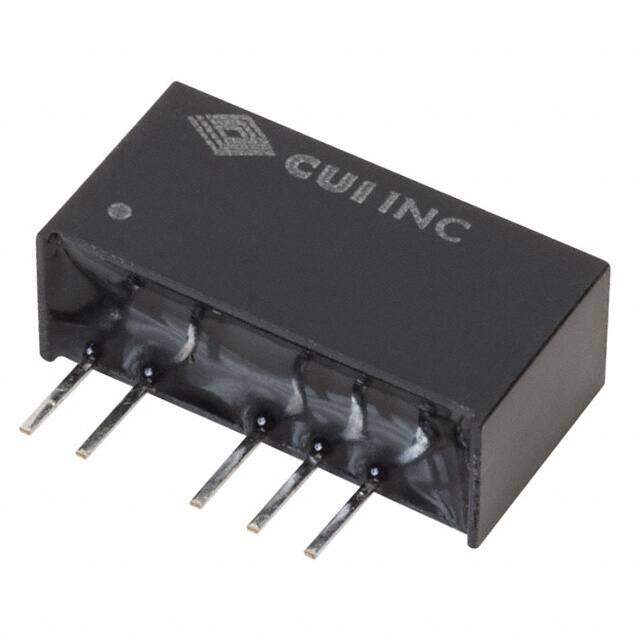

VASD1-S5-D5-SIP

CUI Inc.
RoHS
/
Package 6-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description CONVERTER DC/DC +/-5V OUT 1W
PDF
/
Inventory: 1449
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case 6-SIP Module, 5 Leads

Technical

Operating Temperature -40°C~85°C
Published 2011
Series VASD1-SIP (1W)
Size / Dimension 0.77Lx0.24W x 0.38 H 19.5mmx6.0mmx9.7mm
Feature SCP
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 5/6
JESD-30 Code R-PSMA-T5
Number of Outputs 2
Efficiency 72%
Voltage - Isolation 1kV
Voltage - Input (Max) 5.5V
Output Voltage 5V
Max Output Current 100mA
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 100mA 100mA
Output Power 1W
Voltage - Output 2 -5V
Total Power Output-Max 1W
Isolation Isolated

Dimensions

Height 9.652mm
Length 19.6mm
Width 6mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
