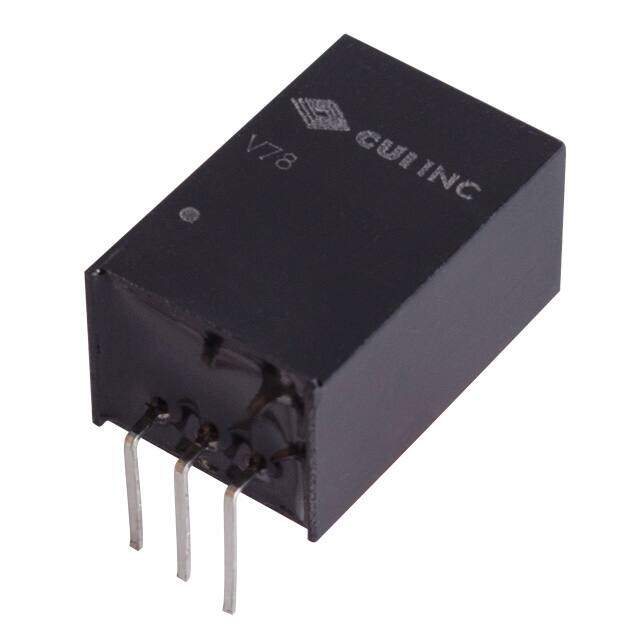

V7815-1000R
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
V78-1000R Series 15 W 15 V 1 A Non-Isolated Switching Regulator
PDF
/
Inventory: 1122
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 3-SIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2015
Series V78-1000
Size / Dimension 0.45Lx0.35W x 0.69 H 11.5mmx9.0mmx17.5mm
Feature OTP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Linear Regulator Replacement
Applications ITE (Commercial)
Max Power Dissipation 15W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 3
JESD-30 Code R-PSMA-P3
Number of Outputs 1
Efficiency 94%
Voltage - Input (Max) 32V
Output Voltage 15V
Max Output Current 1A
Voltage - Input (Min) 20V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Output Power 15W
Current - Output 1 1A
Isolation Non-Isolated
Dimensions
Height 17.526mm
Width 9mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
