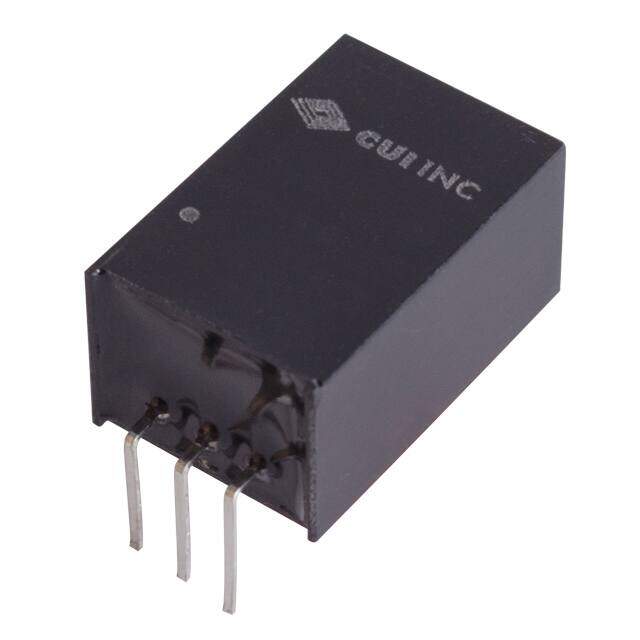

V7809-1000R image
Favorite
V7809-1000R image
Favorite

V7809-1000R

CUI Inc.
RoHS
RoHS RoHS compliant
Package 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 9V 9W
PDF
/
Buying Options
Total Price: USD $6.23
Unit Price: USD $6.228889
≥1 USD $6.228889
≥10 USD $5.876309
≥100 USD $5.543681
≥500 USD $5.229898
≥1000 USD $4.933869
Inventory: 1134
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case 3-SIP Module

Technical

Operating Temperature -40°C~85°C
Packaging Tube
Published 2012
Series V78-1000
Size / Dimension 0.69Lx0.45W x 0.35 H 17.5mmx11.5mmx9.0mm
Feature OTP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Type Linear Regulator Replacement
Resistance -1kOhm
Applications ITE (Commercial)
Max Power Dissipation 9W
Technology HYBRID
Terminal Position SINGLE
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 3
JESD-30 Code R-PSMA-P3
Number of Outputs 1
Efficiency 95%
Voltage - Input (Max) 32V
Output Voltage 9V
Max Output Current 1A
Voltage - Input (Min) 12V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Output Power 9W
Current - Output 1 1A
Total Power Output-Max 9W
Isolation Non-Isolated

Dimensions

Height 8.89mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
